1. Quick Answer
The Bosch 2418455196 pump plunger, identified by stamp code X170S and reference number 2455-196, is a precision component used in mechanical diesel injection pumps for heavy-duty diesel engines, especially MAN and Sinotruk Howo applications.
The plunger works together with the barrel assembly to generate fuel pressure, control fuel delivery, and support stable engine performance.
Common signs of a worn X170S plunger include hard starting, power loss under load, rough idling, excessive smoke, and increased fuel consumption.

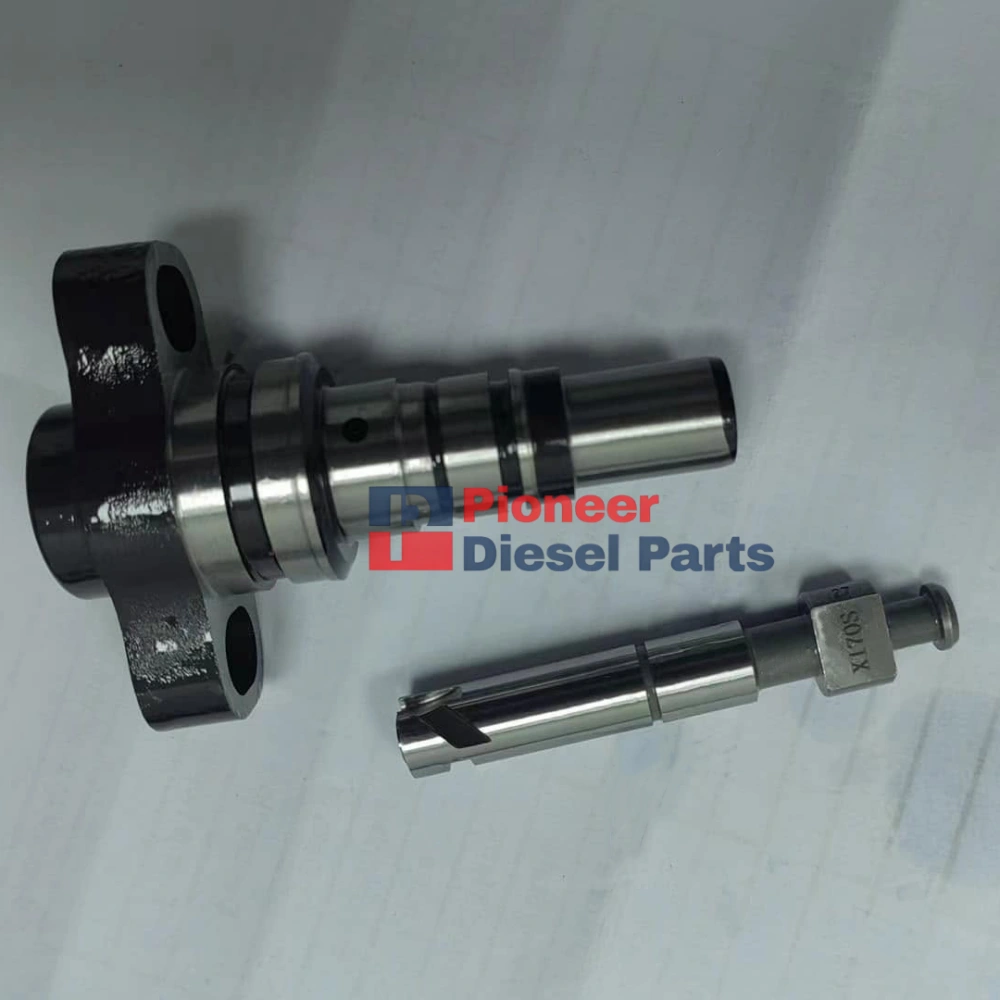

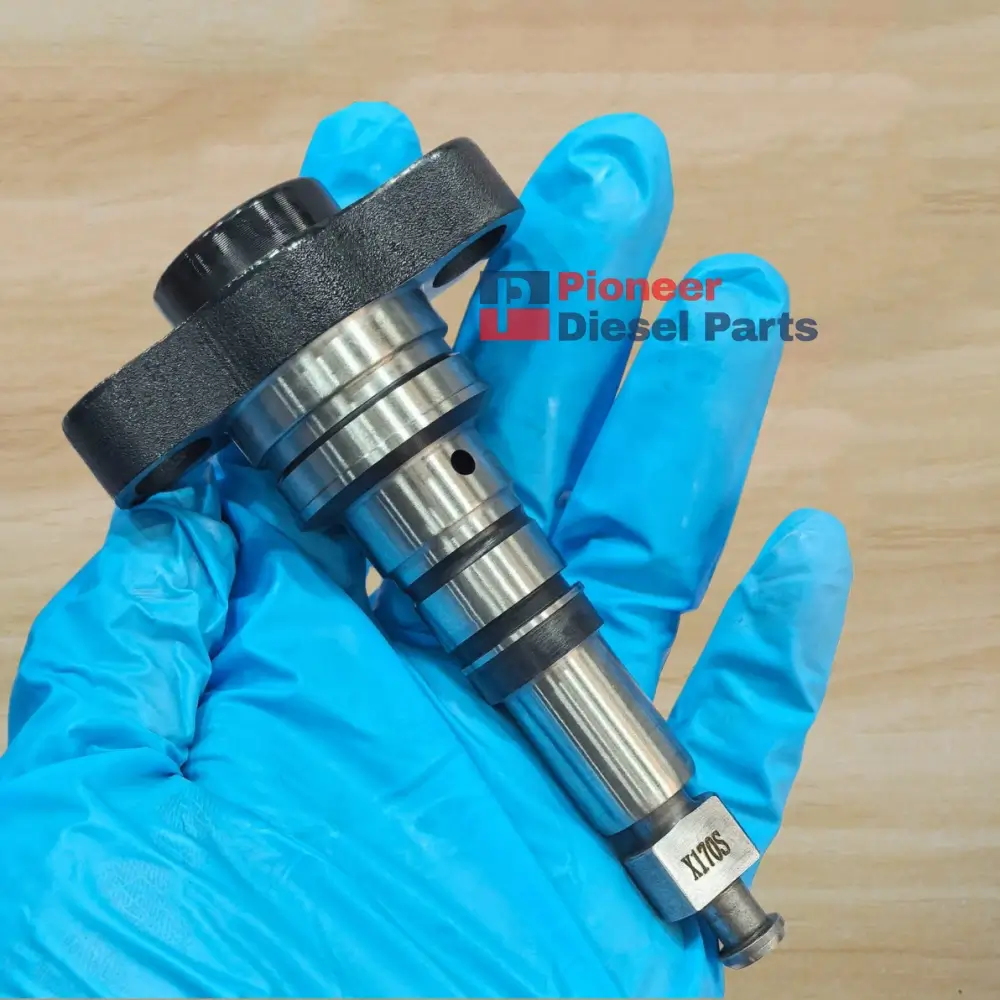

2. What Is the 2418455196 (X170S) Pump Plunger?
The Bosch 2418455196 X170S pump plunger is a precision-machined fuel injection pump element installed inside mechanical diesel injection systems.
It operates together with the barrel to compress diesel fuel and deliver the required amount of fuel to the injectors according to engine speed, load conditions, and injection timing requirements.
Unlike modern common rail components, the X170S belongs to the traditional mechanical inline diesel injection pump plunger family, which is widely used in heavy-duty engines that require durability, reliable fuel delivery, and long service life.
The X170S stamp code identifies the specific plunger design, including its geometry, fuel delivery characteristics, and matching injection pump calibration requirements.
Because the clearance between the plunger and barrel is extremely precise, manufacturing accuracy and surface quality directly affect fuel pressure generation and engine performance.
3. Key Technical Specifications of the 2418455196 Plunger
| Parameter | Specification |
|---|---|
| OEM Part Number | 2418455196 |
| Stamp Code | X170S |
| Reference Number | 2455-196 / 2 418 455 196 |
| Component Type | Pump Plunger Element |
| Injection System | Mechanical Diesel Injection Pump |
| Material | Bearing Steel (GCr15 / equivalent) |
| Hardness | Approximately HRC 60–65 after heat treatment |
| Manufacturing Process | Precision machining and grinding |
| Application | Heavy-duty diesel engines |
| Product Type | New aftermarket replacement |
| Warranty | 6 months |
Note: Actual injection pressure and fuel delivery specifications depend on the injection pump model, engine design, and calibration requirements.
A quality replacement plunger requires accurate dimensional control because even small differences in plunger clearance, helix design, or surface finish can affect injection performance.
4. Which Engines and Vehicles Use the X170S Plunger?
The Bosch 2418455196 X170S plunger is mainly used in heavy-duty mechanical diesel injection systems, especially applications from MAN and Sinotruk Howo.
4.1 MAN Diesel Engine Applications
Common applications include:
- MAN D08 series engines
- for MAN D20 series engines
- MAN D26 series engines
Typical vehicle applications:
- Heavy-duty trucks
- Commercial transport vehicles
- Buses
- Industrial diesel equipment
4.2 Sinotruk Howo Diesel Engine Applications
Common applications include:
- WD615 series engines
- D10 series engines
- D12 series engines
Typical applications:
- Howo A7 trucks
- Howo T7 trucks
- Heavy-duty transport vehicles
- Construction equipment
The X170S plunger is designed for applications requiring consistent fuel delivery, mechanical durability, and stable operation under heavy workloads.
Before ordering a replacement, always confirm:
- OEM number
- Stamp code
- Injection pump model
- Engine model
Correct identification helps prevent installation problems and ensures proper fuel system performance.
5. What Does the X170S Plunger Do in a Diesel Injection System?
The X170S plunger performs several important functions inside a mechanical diesel injection pump.
5.1 High-Pressure Fuel Delivery
The plunger moves inside the barrel through a reciprocating motion, compressing diesel fuel and delivering it to the injector at the required pressure.
This process ensures proper fuel atomization and efficient combustion.
5.2 Precision Fuel Metering
The plunger controls the amount of fuel supplied to each cylinder.
Accurate fuel metering helps maintain:
- Stable engine output
- Better fuel efficiency
- Smooth combustion
- Reduced emissions
5.3 Injection Timing Control
Working with the injection pump cam mechanism, the plunger controls when fuel is delivered according to engine operating conditions.
Correct injection timing is essential for:
- Engine power
- Fuel economy
- Smooth operation
5.4 Internal Fuel Sealing
The close tolerance between the plunger and barrel creates a hydraulic seal.
When wear occurs, internal leakage increases, reducing the pump’s ability to maintain sufficient fuel pressure.
This can result in poor combustion, reduced power output, and unstable engine operation.
6. Common Failure Symptoms of a Worn X170S Plunger
When the Bosch 2418455196 X170S plunger becomes worn, the injection pump may no longer maintain accurate fuel delivery and pressure.
Because the plunger controls both fuel compression and metering, wear can affect engine starting performance, power output, combustion quality, and fuel efficiency.
6.1 Hard Starting Problems
A worn plunger surface or excessive clearance between the plunger and barrel reduces the injection pump’s ability to generate sufficient fuel pressure during engine cranking.
Typical symptoms include:
- Longer cranking time before starting
- Difficult cold starts
- Reduced starting reliability in low temperatures
Insufficient injection pressure prevents proper fuel atomization, making combustion less efficient during startup.
6.2 Power Loss Under Heavy Load
When the X170S plunger cannot maintain correct fuel delivery, the engine may not receive enough fuel during high-demand operation.
Common situations include:
- Hill climbing
- Heavy cargo transportation
- Acceleration
- Continuous high-load operation
Drivers may notice:
- Reduced engine response
- Lower pulling power
- Slower acceleration
For commercial trucks, this type of performance loss can significantly affect operating efficiency.
6.3 Rough Idling and Unstable Engine Operation
Excessive wear between the plunger and barrel can cause inconsistent fuel delivery between injection cycles.
Possible symptoms include:
- Unstable idle speed
- Engine vibration
- RPM fluctuation
- Uneven combustion
A worn plunger may deliver different fuel quantities between cylinders, causing poor engine smoothness.
6.4 Excessive Black Smoke Emissions
Poor injection performance caused by plunger wear can reduce fuel atomization quality and lead to incomplete combustion.
Typical results include:
- Black exhaust smoke
- Increased particulate emissions
- Reduced combustion efficiency
However, black smoke can also be caused by injector problems, air intake issues, or incorrect injection timing. Proper diagnosis is recommended before replacing the plunger.
6.5 Increased Fuel Consumption
A worn pump plunger may reduce fuel delivery accuracy and injection efficiency.
When the plunger and barrel clearance becomes excessive, the injection pump may lose its ability to precisely control fuel quantity. The engine may consume more diesel to produce the same power output.
Possible results include:
- Higher fuel consumption
- Increased operating costs
- Reduced fuel economy
- Higher exhaust emissions
Replacing a worn plunger with a properly matched replacement component can help restore normal injection pump performance.
6.6 Engine Misfire and Uneven Combustion
Uneven fuel supply caused by plunger wear may result in incomplete combustion in one or more cylinders.
Possible signs include:
- Engine hesitation
- Irregular running
- Reduced overall performance
- Uneven engine power output
If fuel delivery varies between cylinders, the engine may experience unstable combustion and reduced operating efficiency.
6.7 White Smoke During Startup
White smoke during startup may occur when diesel fuel is not completely burned due to insufficient injection pressure or delayed combustion.
Possible causes include:
- Reduced fuel atomization
- Low injection pressure
- Incorrect injection timing
However, white smoke can also be related to injector problems, compression issues, or other engine conditions. Further inspection is required before replacing the plunger.
7. How Can I Diagnose a Failing X170S Plunger?
Correct diagnosis is important because similar engine symptoms can also be caused by:
- Faulty injectors
- Blocked fuel filters
- Injection timing problems
- Fuel contamination
- Injection pump wear
A complete inspection should include the following steps.
7.1 Visual Inspection
After removing the injection pump, inspect the plunger and barrel components for:
- Surface scoring
- Scratches or pitting
- Abnormal wear marks
- Heat discoloration
- Excessive clearance between plunger and barrel
The stamp code X170S should also be checked to confirm correct part identification.
7.2 Injection Pump Bench Testing
Professional pump bench testing can measure:
- Fuel delivery quantity
- Injection pressure
- Internal leakage condition
- Pump performance stability
A significant pressure reduction or unstable fuel delivery may indicate excessive plunger wear.
Actual test specifications depend on the specific injection pump model and engine application.
7.3 Leakage Inspection
Internal leakage between the plunger and barrel reduces pumping efficiency.
Common signs include:
- Reduced injection pressure
- Poor fuel delivery
- Increased return flow
A worn plunger assembly usually requires replacement rather than adjustment because the precision clearance cannot be restored through simple adjustment.
7.4 Fuel System Inspection
Fuel contamination is one of the common causes of premature plunger wear.
Check for:
- Water contamination
- Dirt particles
- Poor fuel filtration
- Excessive impurities
Maintaining clean fuel and proper filtration is essential for extending injection pump service life.
8. Maintenance and Replacement Guide for X170S Plunger
8.1 Maintenance Practices to Extend Plunger Life
Proper maintenance helps reduce wear and improve injection system reliability.
Key practices:
- Use clean diesel fuel
Avoid contaminated fuel and drain water separators regularly. - Replace fuel filters regularly
Prevent abrasive particles from causing plunger scoring, barrel damage, and internal leakage. - Avoid running the fuel system dry
Maintain proper fuel supply to reduce wear caused by insufficient lubrication. - Maintain correct injection timing
Incorrect timing can increase stress on injection pump components. - Use the correct replacement plunger
Confirm:- OEM number
- Stamp code
- Dimensional accuracy
- Quality inspection
A properly matched X170S plunger helps ensure stable fuel delivery and reliable engine performance.
8.2 How Is the 2418455196 X170S Plunger Replaced?
Replacing a pump plunger requires professional diesel injection repair knowledge and specialized equipment.
The general replacement process includes:
- Remove the injection pump from the engine.
- Disassemble the pump according to the correct service procedure.
- Remove the worn plunger and barrel components.
- Clean and inspect the pump housing.
- Install the new 2418455196 X170S plunger.
- Replace seals or related components if required.
- Perform injection pump bench testing.
- Reinstall and adjust injection timing.
Important: Injection pump rebuilding requires accurate measurement and calibration. Incorrect installation may result in poor engine performance, incorrect fuel delivery, or fuel system damage.
9. How to Choose a Quality Replacement 2418455196 X170S Plunger?
For mechanical diesel injection components, machining accuracy and material quality directly affect reliability and service life.
A reliable aftermarket replacement X170S plunger should have:
- Accurate dimensional control
- Proper heat treatment
- Smooth surface finishing
- Consistent fuel delivery performance
- Professional quality inspection
Before purchasing, always verify:
- OEM number: 2418455196
- Stamp code: X170S
- Injection pump model
- Engine application
Choosing the correct replacement helps ensure proper installation and stable engine operation.
10. Related Parts & Further Reading
Related Plunger Models
Explore other plunger models from the same series and find compatible diesel injection components for different engine applications.
- Plunger and Barrel 2445-145 2418455145 for MACK Renault
- Plunger and Barrel 2455-165 2418455165 for SCANIA 113
- Pump Plunger 2455-309 2418455309 for Mercedes Benz OM401
- Plunger and Barrel 2455-333 2418455333 l for IVECO EUROTRAKKER
Further Reading
Learn more about diesel injection systems, component maintenance, failure diagnosis, and replacement guides through our related technical articles.
- 134101-6620 P51 Pump Plunger: Applications, Failure Symptoms, Testing & Replacement Guide
- 134178-5220 PT78 Plunger: Hino J08C Applications, Specs, Failures & Replacement
- Plunger and Barrel 2455-325 2418455325 for Renault Magnum 12.0L
- Plunger and Barrel 2455-508 2418455508 for Renault Kerax 11.1L
11. Frequently Asked Questions About 2418455196 X170S Plunger
Q1. What Is the OEM Number of the X170S Plunger?
The OEM number is Bosch 2418455196.
It is also identified by:
- Stamp code: X170S
- Reference number: 2455-196
- Alternative number: 2 418 455 196
Q2. Is the X170S Plunger Used in Common Rail Diesel Systems?
No.
The Bosch 2418455196 X170S is designed for mechanical diesel injection pump systems, not modern electronically controlled common rail injectors.
It works as a precision plunger element inside a mechanical injection pump assembly.
Q3. How Long Does a 2418455196 X170S Plunger Last?
Service life depends on:
- Fuel quality
- Maintenance frequency
- Operating environment
- Injection pump condition
With clean fuel, proper filtration, and correct maintenance, a quality replacement plunger can provide long service life in heavy-duty applications.
Q4. Can the X170S Plunger Be Replaced Separately?
Yes.
The plunger element can usually be replaced during injection pump rebuilding.
However, professional calibration is required after replacement to ensure:
- Correct fuel delivery
- Proper injection timing
- Stable engine operation
Q5. What Should I Check Before Buying an X170S Replacement Plunger?
Before ordering, confirm:
- OEM number
- Stamp code
- Injection pump model
- Engine model
- Vehicle application
Matching only the appearance is not enough because different plungers may have different fuel delivery characteristics.
Q6. Is a New Aftermarket X170S Plunger Reliable?
A quality new aftermarket plunger can provide reliable performance when it is manufactured with proper material selection, precision machining, and quality control.
Important factors include:
- Accurate machining tolerance
- Correct heat treatment
- Smooth surface finish
- Performance inspection
12. 2418455196 X170S Plunger Overview
The Bosch 2418455196 X170S pump plunger is a critical mechanical diesel injection component designed for heavy-duty applications, including MAN and Sinotruk Howo diesel engines.
Its main functions include:
- Generating injection pressure
- Controlling fuel delivery
- Supporting efficient combustion
- Maintaining stable engine performance
When replacement is required, selecting the correct plunger based on OEM number, stamp code, injection pump model, and engine application is essential.
For distributors, diesel repair workshops, and fleet maintenance suppliers, a reliable aftermarket replacement X170S plunger can help restore injection pump performance while reducing repair downtime.
Product Information:
- Part Number: Bosch 2418455196
- Stamp Code: X170S
- Component Type: Mechanical Injection Pump Plunger Element
- Product Type: New Aftermarket Replacement
- Warranty: 6 Months
Disclaimer
All brand names, trademarks, OEM part numbers, engine models, equipment models, and vehicle names mentioned in this article are used for reference and compatibility identification purposes only. Unless expressly stated otherwise, all products featured are high-quality aftermarket replacement parts and are not genuine OEM products, nor are they manufactured, affiliated with, endorsed, or sponsored by the respective original equipment manufacturers. All trademarks and registered trademarks are the property of their respective owners.
