The M11 injector repair kit is a replacement component set designed to rebuild serviceable Cummins Celect electronic unit injectors. Instead of replacing the complete injector, a repair kit allows a diesel workshop to replace selected sealing, spring, fuel-passage, and other service components when the injector’s main precision components remain within applicable service limits.
A commonly referenced kit is RTF26129, which was developed as a consolidated repair solution for Cummins Celect injector applications covering L10, M11, ISM, and N14 engines. The kit includes components such as O-rings, fuel passage parts, a filter, check ball, nozzle pressure spring, and plunger-and-barrel bias springs.
1. What Is a Cummins M11 Injector Repair Kit?
A Cummins M11 injector repair kit is a collection of replacement components used during the overhaul of Celect electronic unit injectors.
The Cummins M11 uses an electronically controlled unit-injector system. The injector combines fuel injection functions within the unit injector assembly, while mechanical engine operation provides the actuation required for injection.
During long-term operation, sealing components, springs, filters, and other service parts can become worn or contaminated. A repair kit provides replacement components for these serviceable areas without requiring replacement of the complete injector.
One widely referenced repair kit is RTF26129. According to the published DIPACO product information, RTF26129 consolidated the earlier RTF26104 and RTF26105 repair kits and was designed to cover Cummins Celect injector applications for L10, M11, ISM, and N14 engines.
The basic rebuild concept is:
Diagnose → Remove → Disassemble → Clean → Inspect → Replace Service Components → Reassemble → Test
2. What Is Included in the M11 Injector Repair Kit?
For the RTF26129 configuration, the published parts list includes the following components:
| Component | Part Number | Function / Application |
|---|---|---|
| Fuel Passage Screw | RTF26119 | Secures and seals the fuel passage |
| Fuel Passage Washer | RTF26120 | Provides the sealing interface for the fuel passage screw |
| Coil and Barrel O-Ring | RTF26118 | Seals the coil and barrel assembly |
| Coil Retainer Nut O-Ring | D3034408 | Seals the coil retainer area |
| Upper Nut O-Ring | D3070136 | Provides sealing at the upper injector section |
| Middle Nut O-Ring | D3070137 | Provides sealing at the middle injector section |
| Lower Nut O-Ring | D3070138 | Provides sealing at the lower injector section |
| Filter | D3071967 | Filters fuel within the injector service circuit |
| Check Ball | D3076068 | Controls fuel flow within the injector |
| Retaining Screw | D3080811 | Listed for N14 applications |
| Body O-Ring | RTF26121 | Used for L10/M11/ISM applications |
| Nozzle Pressure Spring | RTF26101 | Provides spring force for nozzle pressure control |
| P&B Bias Spring, 0.254 in. ID | RTF26100 | Plunger-and-barrel bias spring |
| P&B Bias Spring, 0.188 in. ID | RTF26123 | Alternative plunger-and-barrel bias spring |
The same source also identifies RTF26129-25 as a package intended for rebuilding 25 injectors. It replaced the corresponding 25-injector versions of the earlier RTF26104 and RTF26105 kits.
Why Is the D3071967 Filter Important?
The D3071967 filter is an important service component in the RTF26129 configuration.
The published product information specifically recommends replacing the D3071967 filter whenever you remove the injector from the engine. This recommendation makes the filter an important part of injector service rather than a component you should automatically reuse.
Clean fuel management is particularly important when servicing unit injectors because contamination can affect fuel passages, sealing surfaces, and internal components.
Are All M11 Injector Repair Kits the Same?
No.
Different Celect repair-kit configurations can contain different components.
For example, RTF26140 is listed as an overhaul repair kit for L10/M11/N14/ISM applications and includes additional components such as a wiring harness and different spring-seat options. Therefore, buyers should not assume that RTF26129 and RTF26140 have identical contents.
Always verify the exact kit number and injector application before purchasing.
3. Which Cummins Engines and Injectors Use This Repair Kit?
The RTF26129 repair-kit configuration is associated with Cummins Celect injector applications covering:
- Cummins L10
- Cummins M11
- Cummins ISM
- Cummins N14
The published product information specifically identifies RTF26129 as a consolidated kit for these Celect applications.
Several injector references are commonly associated with these engine families, including:
- 3081319
- 3411756
- 4026222
- 4902921
- 4928171
These numbers should be treated as identification references rather than proof that every injector is directly interchangeable.

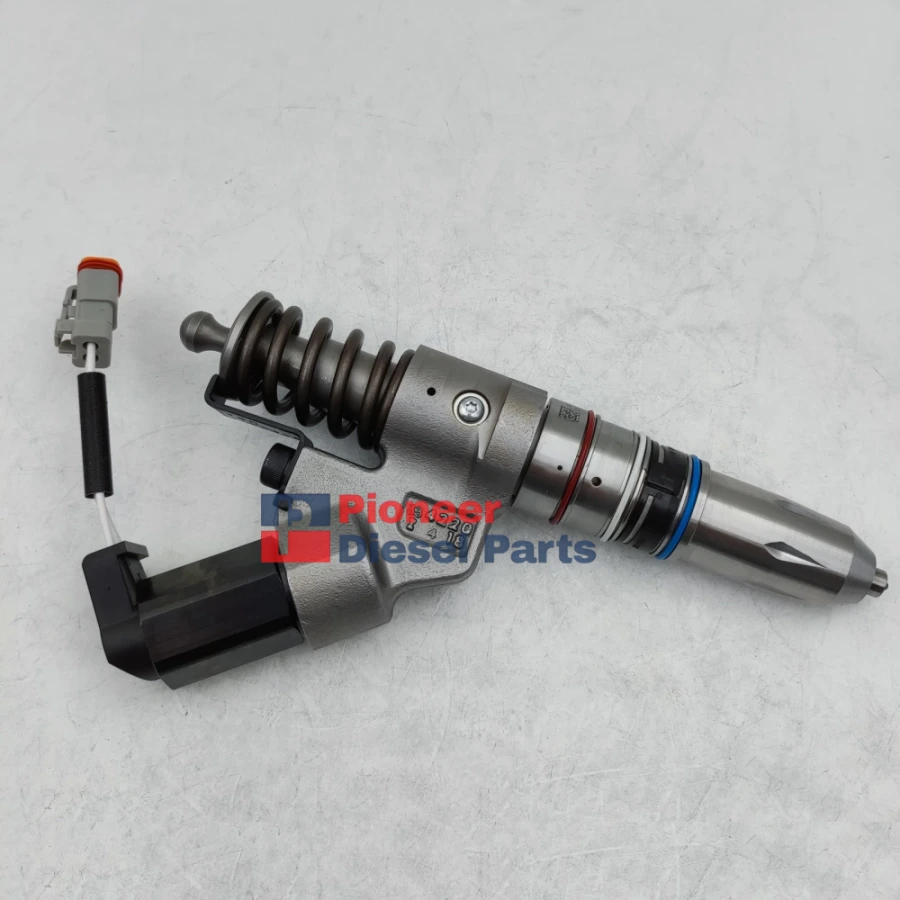

For example, aftermarket injector listings associate 4902921 and related references with M11/ISM/QSM11 Celect applications, while cross-reference lists may include 3411756 and 4088384. Application verification is therefore still necessary before ordering.
How Should You Confirm Compatibility?
The safest approach is to provide both:
- The injector part number
- The engine model
If available, also provide the engine serial number or a clear photo of the injector identification markings.
4. What Are the Technical Specifications of the M11 Celect Injector System?
The M11 Celect injector is an electronic unit injector (EUI) rather than a conventional injector supplied by a separate high-pressure common rail.
The main characteristics relevant to repair-kit servicing include:
- Injector type: Electronic unit injector
- Actuation: Mechanically actuated through the engine’s injector drive system
- Control: Electronic control
- Service components: O-rings, springs, fuel-passage components, filter, check ball, and related service parts
- Typical repair approach: Inspect the injector core and replace serviceable wear components
- Post-rebuild requirement: Injector testing before returning the unit to service
Does the Repair Kit Replace All Injector Components?
No.
This is one of the most important points when purchasing an M11 injector repair kit.
The kit replaces selected service components, but it does not automatically replace every precision component inside the injector.
During rebuilding, the technician should inspect the injector body and reusable internal components for:
- Wear
- Scoring
- Damage
- Contamination
- Deformation
- Abnormal surface condition
- Components outside applicable service specifications
If a precision component is beyond its service limit, replacing only the O-rings and springs is not an adequate repair.
5. What Are the Common Symptoms of an M11 Injector Problem?
A faulty M11 injector can affect fuel delivery and combustion, resulting in several noticeable engine symptoms. However, these symptoms can also be caused by fuel-system, electrical, or engine-mechanical problems, so injector testing should be performed before replacing or rebuilding the injector.
Rough or Unstable Idle
Incorrect or inconsistent fuel delivery can cause uneven cylinder operation and a rough or unstable idle. The engine may also run unevenly at low speed.
Hard Starting or Extended Cranking
An injector with internal leakage, contamination, or abnormal fuel delivery may contribute to hard starting or extended cranking. The condition may be more noticeable during cold starts or after the engine has been parked for an extended period.
Excessive Exhaust Smoke
Abnormal injector fuel delivery can affect combustion and increase exhaust smoke. Black or white smoke may indicate incomplete or abnormal combustion, although smoke color alone cannot confirm an injector fault.
Increased Fuel Consumption
Poor injector performance can reduce combustion efficiency and increase fuel consumption. If higher fuel consumption occurs together with rough running, smoke, or reduced engine performance, injector testing can help identify whether the injector is contributing to the problem.
Reduced Engine Performance
A malfunctioning injector may contribute to:
- Reduced engine power
- Uneven acceleration
- Poor throttle response
- Rough engine operation
- Increased fuel consumption
These symptoms can also result from other engine or fuel-system faults, so they should be evaluated as part of the overall diagnostic process.
Abnormal Injector Test Results
Professional injector testing provides more reliable evidence than symptoms alone. Testing may identify abnormal fuel delivery, leakage, or other performance problems.
If an injector fails testing, it should be removed and inspected to determine whether the injector core is suitable for rebuilding with an M11 injector repair kit or requires more extensive repair.
Key point: Engine symptoms can indicate a possible injector problem, but testing is needed to determine whether the injector is actually defective and suitable for rebuilding.
6. How Do You Rebuild a Cummins M11 Injector?
A professional M11 injector rebuild should follow a controlled process rather than simply replacing visible O-rings.
Step 1: Diagnose the Injector
Before removing the injector, confirm that the symptoms are consistent with an injector-related problem.
This helps prevent unnecessary injector rebuilding when the actual problem is located elsewhere.
Step 2: Remove the Injector
Remove the injector using the applicable service procedure.
The D3071967 filter should be replaced during applicable injector service, as specified in the RTF26129 product information.
Step 3: Disassemble the Injector
Disassemble the injector using appropriate tooling and service procedures.
Organize the components to identify and inspect reusable parts correctly.
Avoid mixing components from different injectors unless the applicable rebuilding procedure specifically permits it.
Step 4: Clean and Inspect the Components
Clean the components using suitable professional cleaning procedures.
Inspect the injector for:
- Contamination
- Wear
- Surface damage
- Deformation
- Seal damage
- Spring condition
- Internal component condition
Particular attention should be given to precision components because a repair kit cannot compensate for components that are beyond serviceable limits.
Step 5: Replace the Repair Kit Components
Install the appropriate new components from the selected repair kit.
Depending on the kit configuration, replacement components may include:
- O-rings
- Fuel passage screw
- Fuel passage washer
- Filter
- Check ball
- Nozzle pressure spring
- Plunger-and-barrel bias springs
- Body O-ring
- Other application-specific service parts
The correct components should be selected according to the exact repair-kit configuration.
Step 6: Reassemble the Injector
Reassemble the injector according to the applicable service procedure.
Correct component positioning and sealing are essential. Incorrect installation can result in fuel leakage, abnormal injector operation, or premature failure.
Step 7: Test the Rebuilt Injector
The rebuilt injector should be tested using suitable professional injector-testing equipment.
Depending on the applicable test procedure, evaluation may include:
- Fuel delivery
- Leakage
- Return flow
- Injector operation
- Response characteristics
- Overall injector performance
If the injector does not meet the applicable test requirements, additional inspection or component replacement may be necessary.
7. Should You Rebuild an M11 Injector or Replace the Complete Injector?
The decision depends primarily on the physical condition of the injector.
When Is an M11 Repair Kit a Good Choice?
A repair kit can be appropriate when:
- The injector body is serviceable.
- Major precision components remain within applicable specifications.
- The problem is related to replaceable service components.
- The workshop has suitable rebuilding equipment.
- The injector can be tested after assembly.
- The customer prefers a component-level repair solution.
In this situation, a repair kit can allow the workshop to replace only the required service components instead of automatically replacing the complete injector.
When Is a Complete Injector Better?
A complete injector may be more appropriate when:
- The injector body is damaged.
- Major precision components are excessively worn.
- Internal components cannot be restored to applicable specifications.
- The injector fails testing after normal repair procedures.
- The workshop does not have the equipment required for professional injector rebuilding and testing.
Repair Kit vs. Complete Injector
M11 Injector Repair Kit
- Replaces selected service and wear components
- Intended for a serviceable injector core
- Can reduce unnecessary component replacement
- Requires inspection and professional testing
- Suitable for injector rebuilding workshops
Complete Injector
- Replaces the complete injector assembly
- Appropriate when major components are beyond service limits
- Reduces the amount of component-level rebuilding work
- May have a higher replacement cost
The correct choice should therefore be based on injector condition, not simply on the engine model.
8. How Should You Choose and Maintain an M11 Injector Repair Kit?
For workshops, fleet operators, and diesel-parts distributors, selecting the correct M11 injector repair kit requires more than matching the engine model.
Verify the Correct Repair Kit
Before ordering, confirm:
- Repair kit number
- Injector part number
- Engine model and application
- Kit contents
- Required quantity
Different Celect repair kits can contain different components, so buyers should verify the repair-kit number and injector application before purchase.
Check Component Quality
Important factors for aftermarket repair kits include:
- Accurate component dimensions
- Reliable sealing performance
- Suitable material quality
- Consistent spring characteristics
- Production and batch consistency
For regular injector rebuilding, consistent component quality is generally more important than choosing the lowest-cost kit.
Consider Supply and Support
For bulk or wholesale purchases, consider:
- Stock availability
- Bulk pricing
- Packaging
- Compatibility assistance
- Warranty and technical support
Providing the injector part number and engine application helps the supplier confirm the appropriate repair-kit configuration.
How Can You Help Prevent Injector Problems?
Proper fuel-system maintenance can help reduce injector-related problems:
- Replace fuel filters at the recommended service interval.
- Keep contaminated fuel and water out of the fuel system.
- Drain the water separator when required.
- Replace applicable injector filters during injector service.
- Use the correct repair components for the injector application.
For M11 injector repair kit availability, compatibility confirmation, and wholesale supply, Pioneer Diesel Parts can assist with part-number and application verification.
9. Related M11 Injector Repair Kit Models and More Reading
Selecting the correct M11 injector repair kit requires checking the injector part number, engine model, and Cummins Celect fuel system configuration. Proper matching helps support accurate injector rebuilding, reliable injector performance, and consistent diesel fuel system operation.
- Solenoid Valve 4307545 For Cummins M11 N14 Injector
- Spring Seat Housing 3066736 For Cummins M11 N14 L10 Injector
- Control Valve Metering Plunger 3411711 for M11 N14
- Solenoid Valve 4307547 3080429 For Cummins M11 N14 QSM11 Engine
More Reading:
- Cummins X15 Injector Repair Kit: Complete XPI Rebuild Guide & Replacement Solutions
- 2488244 XPI Injector Repair Kit: Complete Scania DC09, DC13 & DC16 Guide
- Injector Nozzle 3609925 for Cummins M11
10. Frequently Asked Questions About M11 Injector Repair Kits
Q1: What components does a Cummins M11 injector repair kit include?
A Cummins M11 injector repair kit can include O-rings, fuel passage screws and washers, filters, check balls, nozzle pressure springs, plunger-and-barrel bias springs, and other application-specific sealing and service components. The exact components vary by repair-kit configuration, so buyers should verify the kit contents against the injector part number and application before ordering.
Q2: What engines can use an M11 injector repair kit?
M11 injector repair kits support compatible Cummins Celect injector applications, including the L10, M11, ISM, and N14 engines, depending on the specific injector and repair-kit configuration. Before ordering, buyers should match the repair kit to the injector part number and engine application.
Q3: Is RTF26129 the same as every M11 injector repair kit?
No.
RTF26129 is one specific repair-kit configuration. Other Celect kits, including RTF26140, can contain additional or different components.
For this reason, the repair-kit number should be matched with the injector application before ordering.
Q4: Can you rebuild an M11 injector instead of replacing it?
Yes, provided the injector is suitable for rebuilding.
Technicians should disassemble, clean, and inspect the injector, rebuild it with the correct service components, and test it afterward.
If major precision components are beyond serviceable limits, a repair kit alone may not be sufficient.
Q5: Does an M11 injector repair kit include a complete injector?
No.
A repair kit contains selected replacement components for injector rebuilding. It is not a complete injector assembly.
If the injector core has damage or fails the applicable tests after rebuilding, consider replacing it with a complete injector.
Q6: Why should technicians test the injector after rebuilding?
Testing confirms whether the rebuilt injector performs correctly.
Replacing O-rings, springs, filters, or other service components does not guarantee that the complete injector meets its required performance characteristics.
Professional testing helps determine whether the rebuilt injector is suitable for return to service.
Q7: Can Other Problems Cause Injector-Like Symptoms?
Yes.
Hard starting, rough running, smoke, reduced power, and increased fuel consumption can also result from fuel-supply problems, electrical issues, engine mechanical problems, or other system faults.
For this reason, injector replacement or rebuilding should be based on diagnosis and testing rather than symptoms alone.
Conclusion
The M11 injector repair kit provides a practical solution for rebuilding serviceable Cummins Celect electronic unit injectors without replacing the complete injector assembly.
However, choosing the correct repair kit is only part of the rebuilding process. First, verify the injector part number and engine application, then inspect the injector core and precision components to determine whether the injector is suitable for rebuilding. After assembly, professional injector testing is recommended to confirm proper performance.
For M11 injector repair kit availability, compatibility confirmation, and wholesale supply, contact Pioneer Diesel Parts with your injector part number and engine model.
Disclaimer
All brand names, trademarks, OEM part numbers, engine models, equipment models, and vehicle names mentioned in this article are used for reference and compatibility identification purposes only. Unless expressly stated otherwise, Pioneer Diesel Parts supplies high-quality aftermarket replacement parts featured on this website. These products are not genuine OEM products, and the respective original equipment manufacturers do not manufacture, affiliate with, endorse, or sponsor them. All trademarks and registered trademarks are the property of their respective owners.
