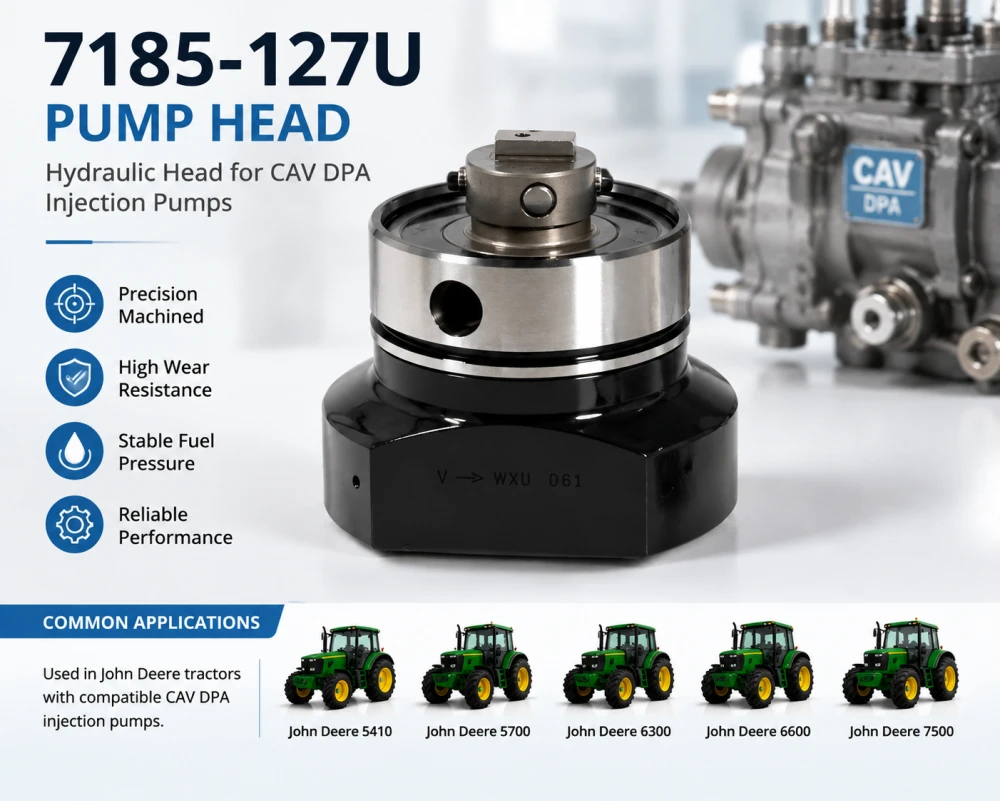

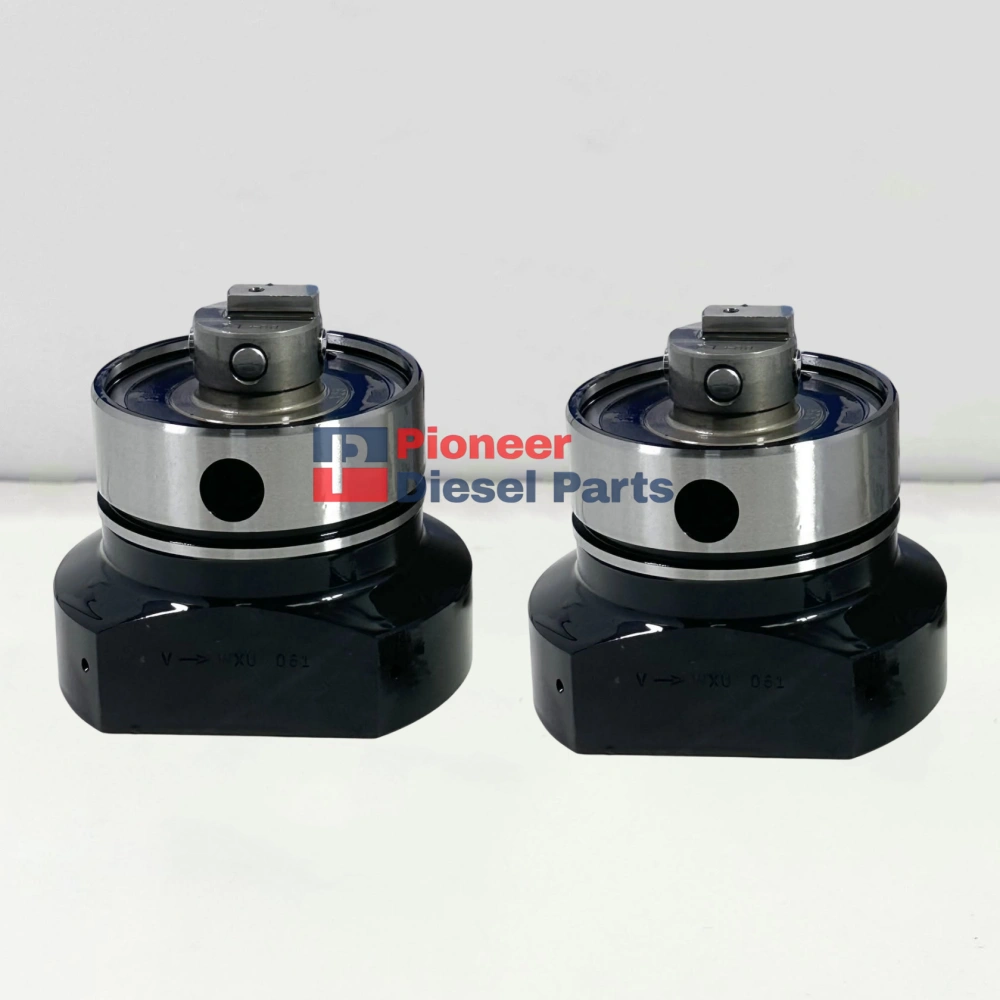

The 7185-127U Pump Head Rotor is a hydraulic head and rotor assembly designed for CAV DPA rotary distributor diesel injection pumps. It is a critical internal component that controls fuel pressurization and distribution to each injector outlet according to the correct engine firing sequence.
The 7185-127U is mainly used in 4-cylinder diesel injection pump applications, including agricultural tractors and diesel equipment equipped with CAV, Lucas, and Delphi rotary mechanical fuel injection systems.
Common applications include John Deere tractors such as 5410, 5700, 6300, 6600, and 7500 models equipped with compatible CAV DPA injection pumps.
Before replacement, always confirm the original pump head number, injection pump model, and engine specifications to ensure correct compatibility.
1. What Does the 7185-127U Hydraulic Head and Rotor Do?
The 7185-127U hydraulic head works together with the rotor assembly inside the distributor injection pump to control diesel fuel delivery.
Its main functions include:
- Building injection pressure inside the pump
- Distributing pressurized fuel to each injector outlet
- Maintaining correct fuel delivery sequence
- Supporting stable engine power and combustion performance
When the hydraulic head becomes worn, internal fuel leakage increases, reducing injection pressure and causing symptoms such as hard starting, power loss, smoke, and unstable engine operation.
2. 7185-127U Pump Head Rotor Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 7185-127U |
| Product Type | Hydraulic Head and Rotor / Injection Pump Head |
| Fuel System Type | Mechanical rotary distributor injection pump |
| Compatible Injection Pumps | CAV DPA, Lucas DPA, Delphi DPA series |
| Cylinder Application | 4-cylinder diesel engines |
| Application Type | Agricultural tractors and diesel machinery |
| Material | Hardened alloy steel with precision-ground hydraulic surfaces |
| Manufacturing Process | Precision machining, grinding and hydraulic surface finishing |
| Replacement Type | New aftermarket replacement |
| Warranty | 6 months against manufacturing defects |
Note: Actual fuel delivery performance depends on injection pump calibration, governor condition, injector condition, and engine specifications.
3. Which Injection Pumps and Engines Use the 7185-127U Pump Head Rotor?
The 7185-127U Hydraulic Head and Rotor is mainly associated with CAV DPA rotary distributor injection pumps used in agricultural and industrial diesel applications.
Compatible Injection Pump Systems
The 7185-127U is commonly used with:
- CAV DPA rotary distributor pumps
- Lucas CAV DPA mechanical injection pumps
- Delphi DPA replacement applications
The hydraulic head is installed inside the complete injection pump assembly. Correct identification should always be based on the complete pump model rather than only the component number.
Common Engine and Tractor Applications
The 7185-127U pump head is commonly listed for the following John Deere tractor applications equipped with compatible CAV DPA injection pumps:
- John Deere 5410
- John Deere 5700
- or John Deere 6300
- John Deere 6600
- John Deere 7500
Typical equipment applications include:
- Agricultural tractors
- Farm utility equipment
- Diesel-powered machinery using CAV rotary fuel injection systems
Because different regions may use different injection pump configurations, always verify the complete injection pump identification before ordering.
4. What Are the Cross Reference Numbers for the 7185-127U Pump Head Rotor?
The 7185-127U may appear in different supplier catalogs under related hydraulic head and injection pump references.
Common reference information includes:
- 7185-127U Hydraulic Head and Rotor
- CAV DPA pump hydraulic head assembly
- Lucas/Delphi DPA replacement hydraulic head
Some suppliers may list additional pump references such as RE508715 or V8860A230W depending on the application catalog.
Always confirm compatibility using:
- Original pump head number
- Complete injection pump model
- Engine model
- Equipment information
before replacement.
5. What Are the Common Failure Symptoms of a 7185-127U Pump Head Rotor?
A worn 7185-127U hydraulic head can affect fuel pressure and delivery accuracy. Common symptoms include:
1. Hard Starting or Difficult Hot Restart
Symptoms:
- Long cranking time
- Poor starting performance after engine reaches operating temperature
Cause: Internal wear between hydraulic surfaces allows fuel leakage, reducing injection pressure during starting.
2. Engine Power Loss Under Load
Symptoms:
- Weak acceleration
- Reduced pulling power
- Black smoke during heavy operation
Cause: A worn pump head cannot maintain proper fuel pressure and delivery volume.
3. Unstable Idle or Engine Hunting
Symptoms:
- Irregular idle speed
- RPM fluctuation
Cause: Uneven fuel distribution caused by hydraulic head wear or injection pump calibration issues.
4. Excessive Exhaust Smoke
Black smoke: Usually caused by poor atomization, incorrect fuel quantity, or low injection pressure.
White smoke: May indicate incomplete combustion, delayed timing, or fuel delivery problems.
5. Engine No-Start Condition
Possible causes include:
- Severe hydraulic head wear
- Internal leakage
- Rotor seizure
- Contaminated fuel damage
A complete injection pump inspection should be performed before replacing only the pump head.
6. What Causes 7185-127U Pump Head Rotor Failure?
Common causes include:
Contaminated Fuel
Water, dirt, and metal particles can damage precision hydraulic surfaces.
Poor Fuel Filtration
Blocked or low-quality filters allow contaminants to enter the injection pump.
Normal Wear
Long-term operation increases internal clearance and reduces fuel pressure.
Low Fuel Lubricity
Modern diesel fuel with reduced sulfur content may increase component wear.
Incorrect Pump Repair
Improper assembly or incorrect calibration can shorten service life.
7. How Do You Replace and Install a 7185-127U Pump Head Rotor Correctly?
Replacing the 7185-127U requires injection pump knowledge and proper calibration equipment.
Recommended Replacement Process
- Clean the injection pump exterior before disassembly
- Record the original pump timing position
- Remove the old hydraulic head carefully
- Install the new 7185-127U using clean diesel fuel lubrication
- Replace damaged seals and gaskets
- Set injection timing according to specifications
- Perform test bench calibration before operation
Professional calibration should verify:
- Fuel delivery quantity
- Injection timing
- Cylinder delivery balance
- Governor operation
8. What Installation Mistakes and Maintenance Practices Should Be Avoided?
To maximize the service life of the 7185-127U pump head, avoid these common mistakes:
Installation Mistakes
- Installing the hydraulic head in a contaminated environment
- Reusing damaged seals or gaskets
- Installing without checking pump timing
- Operating without calibration after repair
Maintenance Recommendations
- Use clean, high-quality diesel fuel
- Replace fuel filters regularly
- Drain water separators periodically
- Avoid fuel contamination
- Check injection timing during regular service intervals
Proper maintenance helps prevent premature wear of the hydraulic head and injection pump components.
9. Where Can You Buy a 7185-127U Pump Head Rotor?
Pioneer Diesel Parts supplies new aftermarket 7185-127U Hydraulic Head and Rotor assemblies for CAV DPA diesel injection pump applications.
The 7185-127U supplied by Pioneer Diesel Parts is a new aftermarket replacement component, not a used or remanufactured part.
Before ordering, provide:
- Original pump head number
- Injection pump model
- Engine model
- Equipment information
- Photos of the original component if available
Compatibility verification before purchase helps prevent incorrect replacement.
10. Related CAV DPA Series Head Rotor Models
The 7185-127U is a 4-cylinder hydraulic head and rotor assembly designed for CAV/Lucas/Delphi DPA rotary distributor diesel injection pumps. Other related DPA series head rotor models are listed below for reference.
- Pump Head Rotor 7185-044L
- Pump Head Rotor 7185-906L
- Hydraulic Head and Rotor 7185-629L
- Hydraulic Head and Rotor 7189-376L
More to Read:
- Pump Head Rotor 7123-340U: Perkins & Massey Ferguson Applications Guide
- 9050-300L
- Pump Head Rotor 7189-871L for Perkins 1104D
- Pump Head Rotor 7189-420L for Perkins 1104
11. Frequently Asked Questions
q1. What is the 7185-127U pump head Rotor used for?
The 7185-127U is a hydraulic head and rotor assembly used in CAV DPA rotary distributor diesel injection pumps, mainly for 4-cylinder diesel applications.
q2. What injection pumps are compatible with 7185-127U?
The 7185-127U is mainly used with CAV DPA, Lucas DPA, and Delphi DPA mechanical rotary injection pump systems.
q3. Which tractors use the 7185-127U pump head Rotor?
Common listed applications include John Deere 5410, 5700, 6300, 6600, and 7500 tractors equipped with compatible CAV injection pumps.
q4. What are the symptoms of a bad 7185-127U hydraulic head Rotor?
Typical symptoms include hard starting, loss of power, unstable idle, excessive smoke, and engine no-start conditions.
q5. How do I identify a worn 7185-127U pump head Rotor?
Common signs include reduced fuel pressure, difficult starting, unstable engine operation, excessive smoke, and poor performance under load. A pump test bench inspection can confirm hydraulic head wear.
q6. Is the 7185-127U a replacement for other CAV pump heads?
The 7185-127U should only replace components with confirmed compatibility. Always verify the complete injection pump model and application before installation.
q7. Can I replace the 7185-127U pump head Rotor myself?
Replacement requires injection pump experience, special tools, and calibration equipment. Professional installation is recommended.
Summary
The 7185-127U Pump Head is an essential hydraulic component for CAV DPA rotary diesel injection pumps used in agricultural tractors and diesel machinery.
Its correct operation depends on accurate identification, clean installation, and proper injection pump calibration.
For replacement applications, always match the complete injection pump system rather than relying only on the part number. A properly selected and installed 7185-127U hydraulic head can restore reliable fuel delivery and improve diesel engine performance.
