What is the Bosch F00VC01033 and why do you need to know about it?
The Bosch F00VC01033 is a common rail injector valve assembly used as a critical repair component in Bosch diesel fuel injectors. It is a precision-engineered component that regulates fuel flow and pressure within the common rail injector assembly, ensuring accurate fuel metering, optimal atomization, and proper combustion.
Key specifications at a glance:
- Part Number: F00VC01033 (also F 00V C01 033, F00V C01 033, FOOVC01033)
- Type: Common Rail Injector Valve Assembly / Control Valve Assembly
- Material: High-speed steel construction
- Fuel Type: Diesel
- Weight: Approximately 30 g (net) / 40-50 g (gross)
- Pressure Rating: Up to 2,000 bar
- Primary Applications: Hyundai Starex 2.5 CRDi, Hyundai Libero 2.5 CRDi, Kia Sorento 2.5 CRDi
- Compatible Injectors: 0445110091, 0445110092, 0445110185, 0445110186, 0445110279, 0445110283, 0445110306
Why it matters: Replacing a worn valve assembly with the F00VC01033 restores proper injector function, leading to better engine performance, improved fuel consumption, and reduced emissions.
Table of Contents
- What is the Bosch F00VC01033 Valve Assembly?
- What Are the Technical Specifications of the F00VC01033?
- Which Injectors Are Compatible with the F00VC01033?
- What Vehicles and Engines Use the F00VC01033?
- How Does the F00VC01033 Valve Assembly Work?
- When Should You Replace the F00VC01033 Valve Assembly?
- Comparison Table: F00VC01033 vs F00VC01372
- What Other Valve Assemblies Are Related to the F00VC01033?
- Frequently Asked Questions
- Where to Source and How to Verify Quality
1. What is the Bosch F00VC01033 Valve Assembly?
The Bosch F00VC01033 is a high-precision valve assembly designed for Bosch common rail (CR) diesel fuel injection systems. As a core component within the injector, this valve is responsible for the precise metering of fuel delivered to the combustion chamber. It is constructed from high-speed steel to withstand the extreme pressures and temperatures characteristic of modern common rail systems.
The valve assembly typically consists of a valve body, control valve element, spring mechanism, and precision sealing surfaces. During operation, the valve opens and closes rapidly in response to electronic control signals from the Engine Control Unit (ECU), allowing fuel to enter or exit the control chamber with millisecond precision. This rapid cycling—hundreds of times per second—enables the precise fuel metering required for modern diesel engines to meet stringent emissions standards while delivering optimal power and efficiency.
The F00VC01033 is a high-quality aftermarket / OE-spec replacement component for Bosch CRDI injectors. Manufactured to strict dimensional and performance standards, this valve ensures precise fit and long-lasting reliability in high-pressure diesel engine environments.
Key Features:
Precise Fuel Control: Ensures accurate fuel metering for improved power, fuel efficiency, and reduced emissions
High Durability: Constructed from high-speed steel to withstand extreme pressures (up to 2,000 bar) and temperatures
Optimized Performance: Maintains efficiency even under demanding operating conditions
OE Quality: Produced to strict manufacturing standards for precise fit and long-lasting reliability
Certification: CE and ISO9001 certified
2. What Are the Technical Specifications of the F00VC01033?
| Parameter | Specification |
|---|---|
| Part Type | Injector Valve Assembly / Control Valve Assembly |
| Manufacturer | Bosch (OE-quality system application) |
| Manufacturer Part Number | F 00V C01 033 |
| Alternative Numbers | F00VC01033, F00V C01 033, FOOVC01033, F ooV C01 033 |
| Fuel Type | Diesel |
| Material | High-speed steel |
| Net Weight | Approx. 30 g |
| Gross Weight | 40–50 g |
| Box Size | 12.5 cm × 2.5 cm × 2.5 cm |
| Pressure Rating | Up to 2,000 bar |
| Function | Regulates fuel flow and pressure within injector |
| Standards | OE manufacturing standards |
| Certification | CE, ISO9001 |
| Warranty | Typically 6 months |
Note: Detailed flow rate specifications may vary depending on the specific injector application. Always verify with the injector’s original specifications.
3. Which Injectors Are Compatible with the F00VC01033?

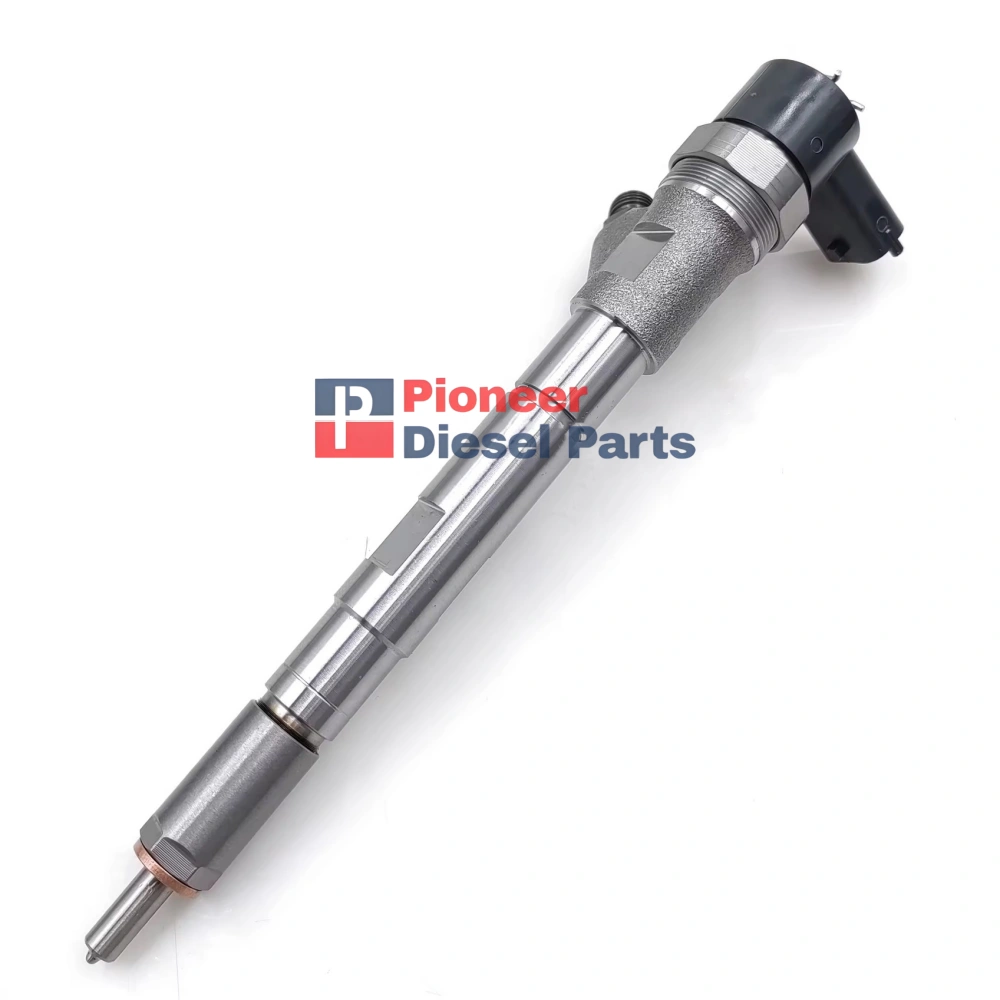

The F00VC01033 valve assembly is compatible with the following Bosch common rail injectors:
- 0445110091 → 0 445 110 091
- 0445110092 → 0 445 110 092
- 0445110185 → 0 445 110 185
- 0445110186 → 0 445 110 186
- 0445110279 → 0 445 110 279
- 0445110283 → 0 445 110 283
- 0445110306 → 0 445 110 306
Additional Compatible Injectors:
- 0986435154
- 0445110730
Key Applications: The F00VC01033 is most commonly associated with injectors 0445110091 and 0445110092, which are used in Hyundai and Kia 2.5 CRDi engines.
4. What Vehicles and Engines Use the F00VC01033?
Primary Vehicle Applications
| Manufacturer | Vehicle / Model | Engine | Power Output |
|---|---|---|---|
| Hyundai | Starex 2.5 CRDi | 2.5L Diesel | 103 kW |
| Hyundai | Libero 2.5 CRDi | 2.5L Diesel | 107 kW |
| Hyundai | Starex 2.5 CRDi | 2.5L Diesel | 107 kW |
| Kia | Sorento 2.5 CRDi | 2.5L Diesel | 107 kW |
OEM / Cross-Reference Numbers
| Reference Type | Number |
|---|---|
| Bosch | F00VC01033, F 00V C01 033 |
| Hyundai OEM | 33800-4A000 |
| Hyundai OEM | 33800-4A300 |
| Porter II | 0 445 110 283 |
Important: Always verify compatibility with the specific injector part number or vehicle VIN before purchase.
5. How Does the F00VC01033 Valve Assembly Work?
The F00VC01033 valve assembly is a critical functional unit inside the fuel injector, responsible for controlling fuel flow with high precision. Here’s how it operates:
- Signal Reception: ECU sends electrical pulse to solenoid
- Valve Actuation: Magnetic field moves valve element
- Fuel Metering: Control chamber pressure changes
- Injection Event: Injector needle opens/closes
- Rapid Cycling: Repeats hundreds of times per second
Key Functional Capabilities:
Precise Injection Control: Enables accurate injection timing, pulse width, and multi-stage injection under different engine conditions
Fuel Sealing and Atomization: Ensures high-pressure fuel is properly sealed and atomized through injector nozzle
High Pressure and High Frequency Operation: Designed for up to 2000 bar and extremely high cycling frequency
6. When Should You Replace the F00VC01033 Valve Assembly?
Common signs include:
- Rough idling or unstable engine operation
- Loss of power
- Increased fuel consumption
- Excessive exhaust smoke
- Hard starting
- Misfire or knocking
- Check Engine Light
Failure Modes:
| Failure Type | Symptoms | Cause |
|---|---|---|
| Sealing Wear | Pressure drop, leakage | Surface wear or pitting |
| Excess Clearance | Injection instability | >0.005mm clearance |
| Spring Fatigue | Slow response | Elastic loss |
| Coil Damage | No actuation | Electrical failure |
Maintenance Options:
Cleaning: Ultrasonic cleaning (20–40kHz) for minor contamination
Replacement: Required for irreversible wear or electrical failure
7. Comparison Table: F00VC01033 vs F00VC01372
| Feature | F00VC01033 | F00VC01372 |
|---|---|---|
| Injector Platform | Bosch CR Injector (Hyundai/Kia 2.5 CRDi platform) | Bosch CR injector platform |
| Application Focus | 2.5L CRDi light commercial & SUV engines | Peugeot Citroën |
| Valve Response | Standard electromagnetic control | Improved response precision |
| Pressure Range | Up to 2000 bar | Up to 2000 bar (system dependent) |
| Compatibility | 0445110091 / 0092 / 0185 series | 0445110340 / 348 / 488 |
| Design Generation | Earlier CR valve architecture | Updated flow control design |
Important: These two valve assemblies are not interchangeable. Always verify injector part number before replacement.
8. What Other Valve Assemblies Are Related to the F00VC01033?
Related Bosch valve assemblies include:
- F00VC01001 / F00VC01003 / F00VC01004 / F00VC01005
- F00VC01011 / F00VC01034 / F00VC01038
- F00VC01306 / F00VC01309 / F00VC01310 / F00VC01311
- F00VC01328 / F00VC01334
- F00RJ01714
References & Further Reading:
- F00RJ00339 Injector Valve Assembly: Symptoms, Testing, Compatibility & Replacement Guide
- F00VC01372 Injector Valve Assembly – Function, Failure Symptoms, Compatibility & Repair Guide
- Common Rail Injector Valve F00VC01044 for Injector 0445110126
- Common Rail Injector Valve F00VC01022 for Injector 0445110084
9. Frequently Asked Questions
Q1: What is the Bosch F00VC01033 valve assembly and which injectors is it compatible with?
A: Aftermarket injector valve assembly. Compatible with Bosch injectors 0445110091, 0445110092, 0445110185, 0445110186, 0445110279, 0445110283, 0445110306, 0986435154, and 0445110730. Always verify part number before purchase.
Q2: What vehicles use the Bosch F00VC01033 valve assembly?
A: Used in Hyundai Starex 2.5 CRDi (103/107kW), Libero 2.5 CRDi (107kW), Kia Sorento 2.5 CRDi (107kW), and other 2.5 CRDi models. OEM cross‑references: Hyundai 33800‑4A000, 33800‑4A300.
Q3: What are the technical specifications of the Bosch F00VC01033?
A: High‑speed steel, rated to 2,000 bar. Net weight ~30g, gross 40‑50g. CE & ISO9001 certified, 12‑month warranty, OE‑quality.
Q4: What are the common symptoms of a failing F00VC01033 valve assembly?
A: Symptoms: rough idle, power loss, increased fuel consumption, black/white smoke, hard starting, misfire/knocking, Check Engine Light with fuel system codes.
Q5: How does the Bosch F00VC01033 valve assembly work?
A: ECU sends pulse to solenoid, moving valve to open/close fuel passage. Controls injection timing and quantity with millisecond precision, repeating hundreds of times per second for multi‑stage injection.
Q6: What are the common failure modes of the F00VC01033 and when should it be replaced?
A: Failure modes: sealing wear, clearance >0.005mm, spring fatigue, coil damage. Minor issues can be cleaned ultrasonically; irreversible damage requires full replacement.
Q7: What is the correct installation torque for the F00VC01033?
A: Tighten valve cap to 20‑30 N·m. Professional installation and test bench calibration are essential for optimal performance.
10. Where to Source and How to Verify Quality
Quality Positioning:
The F00VC01033 is available as a high-quality aftermarket replacement, manufactured to OE-level dimensions and performance standards for Bosch common rail injector systems.
Manufacturing Standards:
Produced under strict quality control with precision machining and tested on common rail benches to ensure stable performance and durability.
Warranty:
Typically 6–12 months depending on supplier and application.
Verification:
Always confirm injector part number and vehicle compatibility before purchase.
Installation:
Professional installation and injector calibration are recommended for best performance and reliability.
