DLLA148P1726 Nozzle for 0445120105 Injector: MAN Truck & Cummins ISBe Applications

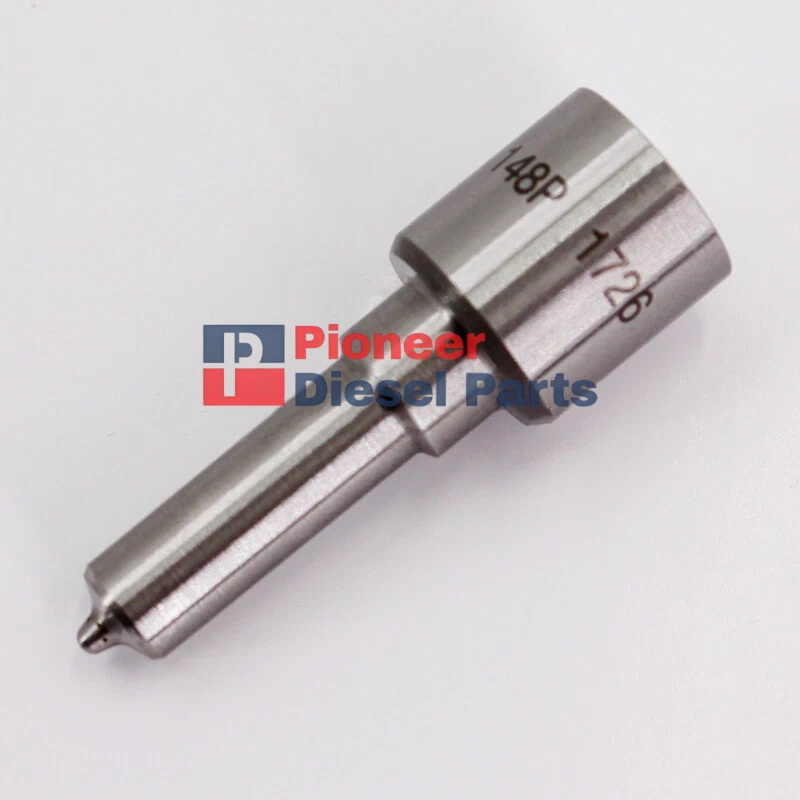

Bosch DLLA148P1726 is a 5‑hole common rail injector nozzle designed for Cummins ISBe 4.5L and 5.9L Euro III/IV diesel engines. It is factory‑installed in Bosch injector assembly 0 445 120 105. Operating pressure: 1,600 bar. This nozzle sits between the smaller DLLA142P1709 (ISLe 8.9L) and the larger DLLA118P2203 (QSL9 8.9L) in terms of flow capacity, delivering the precise fuel metering for medium‑duty applications such as school buses, delivery trucks, and agricultural equipment.

Key specs at a glance:

• Nozzle stamping: DLLA148P1726
• Bosch nozzle number: 0 433 172 060
• Number of holes: 5
• Flow code: 1726
• Compatible injector: 0 445 120 105
• Solenoid valve: F 00R J01 941
• Engine application: Cummins ISBe 4.5L / 5.9L (Euro III/IV)

Table of Contents

1. How DLLA148P1726 Fits Into the Bosch Nozzle Family
2. Complete Technical Specifications
3. Compatible Injector Assemblies and OEM Cross‑References
4. Solenoid Valves and Professional Repair Kits
5. Real‑World Applications – Where This Nozzle Is Used
6. Choosing the Right Nozzle – DLLA148P1726 vs. 142P1709 vs. 118P2203
7. Failure Modes, Symptoms, and Diagnosis
8. Installation and Replacement – ISBe‑Specific Guidelines
9. FAQ
10. Conclusion and Series Links

1. How DLLA148P1726 Fits Into the Bosch Nozzle Family

The Bosch DLLA148P1726 belongs to the DLLA series – hole‑type nozzles with standard sac volume, designed for direct injection common rail systems. Unlike the DSLA series (which uses VCO tip for lower emissions), DLLA nozzles prioritize flow capacity and durability.

Positioning within the DLLA family:

• DLLA142P1709 – for Cummins ISLe 8.9L (large displacement, high power). Hole diameter ~0.142 mm, flow code 1709.
• DLLA148P1726 – for Cummins ISBe 4.5L/5.9L (medium displacement, medium power). Hole diameter ~0.148 mm, flow code 1726.
• DLLA118P2203 – for Cummins QSL9 8.9L (high flow, off‑highway). Hole diameter 0.22 mm, flow code 2203.

What the code tells you:

• D = Diesel nozzle
• L = Long body
• L = Hole‑type (as opposed to S for VCO)
• A = Specific seat angle for common rail
• 148 = Reference diameter (0.148 mm in this coding system)
• P = Body length (φ3.5 series)
• 1726 = Flow calibration code (higher than 1709 but much lower than 2203)

This nozzle is not interchangeable with the other two in this series, even though they look similar. Installing a 1726 into an ISLe engine will cause under‑fueling; installing a 1709 into an ISBe will cause over‑fueling and black smoke.

2. Complete Technical Specifications

Identification numbers

• Nozzle stamping: DLLA148P1726
• Bosch nozzle number: 0 433 172 060
• Injector assembly number: 0 445 120 105
• Major OE cross references: 51101006063

Physical characteristics

• Component type: Hole‑type common rail nozzle
• Number of holes: 5
• Material: High‑speed steel, vacuum hardened
• Hardness: HRC 62–65
• Weight: Approximately 40 g
• Dimensions: 7 cm × 2 cm × 2 cm (packaged)
• Fuel compatibility: Diesel (EN 590 / ASTM D975)

Hydraulic and performance data

• System injection pressure: 1,600 bar
• Flow code: 1726 (mid‑range calibration)
• Compatible solenoid valve: F 00R J01 941
• Needle lift: Approximately 0.25–0.30 mm
• Static return flow (new): ≤60 ml/min at idle

Quality standards

• ISO9001 / ISO/TS16949 certified manufacturing
• 100% flow‑tested before shipment
• Multi‑hole laser drilling for precise spray pattern
• Vacuum hardening for consistent core hardness

These specifications are verified across multiple supplier catalogs, including Bosch original documentation and aftermarket sources such as Bascolin, Ruida, and Starsdiesel.

3. Compatible Injector Assemblies and OEM Cross‑References

The DLLA148P1726 nozzle is factory‑matched to Bosch injector assembly 0 445 120 105. This injector is part of the Bosch CRI family used extensively in Cummins ISBe engines.

Primary injector fitments:

• Bosch injector assembly: 0 445 120 105
• Other OE references: 51101006063

Important distinction: Do not confuse injector 0 445 120 105 (which uses DLLA148P1726) with injector 0 445 120 007 (which uses DSLA143P970 – a VCO nozzle for older Euro III engines). Although both fit some ISBe variants, they are not interchangeable. Always verify the injector assembly number before ordering.

Where to find the injector number: Laser‑etched on the solenoid valve body or upper injector body. The format is 0 445 xxx xxx. Match this number to the table above.

When ordering a complete injector through aftermarket channels, 0445120105 is the safest cross‑reference. If ordering nozzles only, the stamping DLLA148P1726 must be clearly visible on the nozzle body.

4. Solenoid Valves and Professional Repair Kits

Solenoid valve compatibility

The DLLA148P1726 nozzle works with solenoid valve F 00R J01 941. This is the same valve used on many Bosch CRIN injectors, including:

• Injector 0 445 120 121 (DLLA142P1709)
• fuel FInjector 0 445 120 125 (DLLA118P2203, some variants)
• Injector 0 445 120 067 (this nozzle)

The valve is a high‑speed solenoid that controls the pressure in the injector‘s control chamber, which in turn lifts or closes the nozzle needle. Failure of the solenoid (e.g., coil open circuit, plunger sticking) produces fault codes P0201–P0206 and zero injection in that cylinder.

OEM repair kit

A complete OEM‑grade repair kit for injector 0 445 120 067 includes:

• Nozzle: DLLA148P1726 (0 433 171 868)
• Solenoid valve: F 00R J01 941
• Control valve assembly (including ball valve and spring)
• Sealing components (O‑rings, copper gaskets)

When rebuilding an injector, always replace the nozzle tight cap after 5 disassemblies. The cap loses clamping force and can cause internal fuel leakage. Reusing an old cap is a common cause of post‑repair failure.

5. Real‑World Applications – Where This Nozzle Is Used

The DLLA148P1726 is overwhelmingly found in Cummins ISBe 4.5L and 5.9L Euro III/IV engines, which power a wide range of medium‑duty vehicles and equipment.

6. Choosing the Right Nozzle – DLLA148P1726 vs. 142P1709 vs. 118P2203

This is the most common confusion point. All three nozzles are used on Cummins engines, but they are calibrated for different displacements and power levels.

DLLA142P1709

• Primary engine: Cummins ISLe 8.9L
• Displacement: 8.9 liters
• Power range: 290–380 HP
• Approx. hole diameter: 0.142 mm
• Flow code: 1709
• Injector assembly: 0 445 120 121
• Typical application: Heavy trucks, buses (Yutong, Dongfeng)

DLLA148P1726

• Primary engine: Cummins ISBe 4.5L / 5.9L
• Displacement: 4.5–5.9 liters
• Power range: 150–240 HP
• Approx. hole diameter: 0.148 mm
• Flow code: 1726
• Injector assembly: 0 445 120 105
• Typical application: MAN trucks

DLLA118P2203

• Primary engine: Cummins QSL9 8.9L
• Displacement: 8.9 liters (off‑highway rating)
• Power range: 250–400 HP
• Hole diameter: 0.22 mm
• Flow code: 2203
• Injector assembly: 0 445 120 236
• Typical application: Komatsu excavators, large industrial

What happens if you choose the wrong one?

• Using DLLA142P1709 in an ISBe engine (too small) → under-fueling, power loss, lean misfire, and possible piston damage caused by incomplete combustion.
• Fitting DLLA148P1726 to an ISLe engine (too small) → reduced fuel delivery, noticeable power loss, and inability to achieve the engine’s rated output.
• Selecting DLLA118P2203 for an ISBe engine (too large) → severe over-fueling, excessive black smoke, elevated exhaust temperatures, melted pistons, and potential DPF failure (if equipped).

More nozzle models

• DLLA148P2369
• DLLA148P1641
• DLLA148P2221
• DLLA148P1726
• DLLA148P1660
• DLLA148P1334

7. Failure Modes, Symptoms, and Diagnosis

Based on repair data from hundreds of ISBe engines (school buses and delivery trucks), the following failure patterns are most common.

Failure mode #1 – Carbon fouling from extended idle

Most common in school buses that idle for long periods while loading/unloading.

• Mechanism: Low combustion temperature causes incomplete burn; carbon deposits build up on the 5 nozzle holes, progressively blocking them.
• Symptoms: Rough idle, white smoke on initial acceleration after idle, gradual power loss.
• Diagnostic: Leak‑off test may still show normal return flow; test stand reveals uneven spray pattern. One or two holes will be partially blocked.
• Fix: Nozzle replacement (full set). Cleaning rarely restores original flow.

Failure mode #2 – Needle valve seat wear (high return flow)

Occurs gradually over 300,000–500,000 miles.

• Mechanism: High‑pressure fuel (1,600 bar) erodes the needle and seat sealing surfaces. The gap increases, allowing more fuel to bypass into the return circuit.
• Symptoms: Hard starting when hot (rail pressure bleeds down), increased fuel consumption, eventual misfire.
• Diagnostic: Return flow test. Any injector >60 ml/min at idle is suspect. All six should be within 10% of each other.
• Fix: Replace all nozzles.

Failure mode #3 – Water contamination (sudden catastrophic failure)

Usually from a corroding fuel tank or poor quality fuel.

• Mechanism: Water rusts the needle valve; rust particles cause the needle to stick open.
• Symptoms: Sudden heavy white smoke, engine runs on 4 or 5 cylinders, fuel dilution in engine oil (level rises on dipstick).
• Diagnostic: Remove injector – needle will not move freely. Fuel sample shows water.
• Fix: Replace all nozzles, flush entire fuel system, replace filters, clean or replace fuel tank.

Failure mode #4 – Nozzle hole erosion (flow code drift)

Occurs after very high mileage (500,000+ miles) even with good fuel.

• Mechanism: High‑pressure fuel flow slowly enlarges the 5 holes. Flow code increases from 1726 to ~1800–1900.
• Symptoms: Black smoke under load, higher EGT, possible ECU fault for over‑fueling.
• Diagnostic: Test stand shows higher than nominal flow at all pulse widths.
• Fix: Nozzle replacement.

Diagnostic tools required

• Leak‑off test kit (six graduated bottles) – cost under $100, essential for fleet maintenance.
• Professional test stand (Bosch EPS 200 / DCI 700) – for definitive diagnosis.
• Diagnostic scan tool (Cummins Insite or equivalent) – to read fault codes SPN 655, P0201‑P0206, and to reset trim codes after replacement.

8. Installation and Replacement – ISBe‑Specific Guidelines

This section focuses on differences specific to the ISBe engine and the DLLA148P1726 nozzle. For general cleaning, disassembly, and priming steps, refer to the earlier articles in this series (DLLA142P1709 or DLLA118P2203), which cover universal procedures in detail.

Torque values for Cummins ISBe 4.5L / 5.9L (from Cummins service manual)

• Injector hold‑down clamp bolt: 59 N·m (44 lb‑ft) – note that this is slightly lower than the 60–80 N·m used on larger ISLe/QSL9 engines.
• Nozzle retaining nut (injector assembly): 70 N·m (same as typical).
• High‑pressure fuel line connections: 25–30 N·m.

Over‑torquing the hold‑down clamp (>59 N·m) on an ISBe can crack the cylinder head or deform the injector body. Under‑torquing (<50 N·m) allows combustion gas blow‑by, which carbonizes the nozzle tip within hours.

Copper gasket selection

Use a 1.0 mm thickness copper gasket for ISBe engines (not 1.5 mm). Thicker gaskets change injector protrusion into the combustion chamber and can cause piston contact. Always use a new gasket – never reuse.

Priming procedure for ISBe

Unlike larger Cummins engines that rely solely on an electric priming pump, the ISBe also has a manual primer lever on the fuel filter base (typically a small hand pump).

1. After installing new nozzles, pump the lever 20–30 times until resistance is felt.
2. Then turn ignition ON – the electric pump will run for 30 seconds.
3. Crank engine. It may take 10–15 seconds to start due to air bleeding.

Trim code reset (critical for Euro IV engines)

ISBe Euro IV engines (2007+) have injector trim codes stored in the ECU. Each injector has a unique QR code or alphanumeric code.

After nozzle replacement, you must enter the new injector codes into the ECU using Cummins Insite or equivalent software. If you skip this step, the engine may:

• Run rough
• Have poor fuel economy
• Set fault code SPN 655 (cylinder balance)
• Fail emissions testing

Full set replacement recommendation

Even more critical on the ISBe than on larger engines. The ISBe‘s high cylinder pressure and tight emissions limits make cylinder‑to‑cylinder balance extremely important.

Replacing only one nozzle while others are worn will cause:

• Injector balance fault codes
• Uneven power pulses → vibration
• Reduced fuel economy (5–10% drop)
• Faster wear on the new nozzle

Common ISBe‑specific installation mistakes

• Using the wrong copper gasket thickness (1.5 mm instead of 1.0 mm) → piston contact.
• Over‑torquing hold‑down clamp to 80 N·m (ISLe spec) → cracked head.
• Forgetting to manual prime (skipping the hand pump) → prolonged cranking, starter damage.
• Not resetting trim codes → rough running, fault codes.

Related Articles

Read more from this series:

• DLLA142P1709 Common Rail Nozzle – Specs, 0445120121 Injector Fitment & Cummins ISLe Guide
• DLLA118P2203 Nozzle: Specs, Injector Compatibility & Cummins QSL9 Guide
• DSLA143P970 — Hole‑Type Nozzle for Heavy‑Duty Diesel Injection
• Common Rail Diesel Injector Nozzle DLLA160P1650 0 433 172 012

9. FAQ

1. What injector assembly uses DLLA148P1726?

Bosch injector assembly 0 445 120 105.

2. Can I use DLLA148P1726 in a Cummins ISLe engine?

No. ISLe 8.9L requires the higher flow of DLLA142P1709 (or DLLA148P1709 variants). 1726 will under‑fuel, causing power loss and potential piston damage.

3. What is the acceptable return flow for this nozzle?

At idle: ≤60 ml/min. All six cylinders should be within 10% of each other.

4. How many miles do these nozzles typically last?

With good fuel quality and regular filter changes: 300,000–400,000 miles. School buses with extensive idle time may need replacement earlier (200,000 miles).

5. What is the difference between DLLA148P1726 and DSLA143P970?

DLLA148P1726 is a standard hole‑type nozzle used in injector 0 445 120 105 (Euro IV). DSLA143P970 is a VCO nozzle used in injector 0 445 120 007 (older Euro III). They are not interchangeable.

6. Why does my ISBe still smoke after replacing all nozzles?

Check other causes: turbocharger wear (low boost), EGR valve stuck open, air filter restriction, or incorrect trim codes not entered. Also verify that you used the correct flow code (1726, not 1709 or 1760).

7. Do I need a test stand to diagnose nozzle failure?

For basic diagnosis, a leak‑off test is sufficient to identify high return flow. But to confirm hole erosion or carbon blocking, a test stand (Bosch EPS 200 or similar) is required. Many independent diesel shops offer test stand service for $20–$50 per injector.

10. Conclusion

The Bosch DLLA148P1726 is a precision‑engineered common rail nozzle that serves as the correct replacement for Cummins ISBe 4.5L and 5.9L Euro III/IV engines. Its mid‑range flow code (1726) and 5‑hole, ~0.148 mm diameter design provide the exact fuel delivery required for medium‑duty applications, from school buses and delivery trucks to agricultural equipment.

Proper maintenance – including regular fuel filter changes, periodic leak‑off testing, and using clean diesel (EN 590 / ASTM D975) – will maximize nozzle life. When replacement becomes necessary, always:

• Replace all six nozzles as a matched set.
• Use the exact stamping: DLLA148P1726.
• Torque the hold‑down clamp to 59 N·m (ISBe specific).
• Install a new 1.0 mm copper gasket.
• Prime the system using both the manual lever and electric pump.
• Reset injector trim codes with diagnostic software (for Euro IV engines).

This nozzle is not interchangeable with DLLA142P1709 (ISLe) or DLLA118P2203 (QSL9). Always verify the injector assembly number (0 445 120 105) before ordering.
