Diesel injectors are one of the most critical components in a modern diesel engine fuel system. They control the precise delivery of fuel into the combustion chamber, directly affecting power output, fuel efficiency, and emissions.
When a diesel injector begins to fail, the engine will quickly show performance issues. Early detection is essential to avoid costly engine damage.

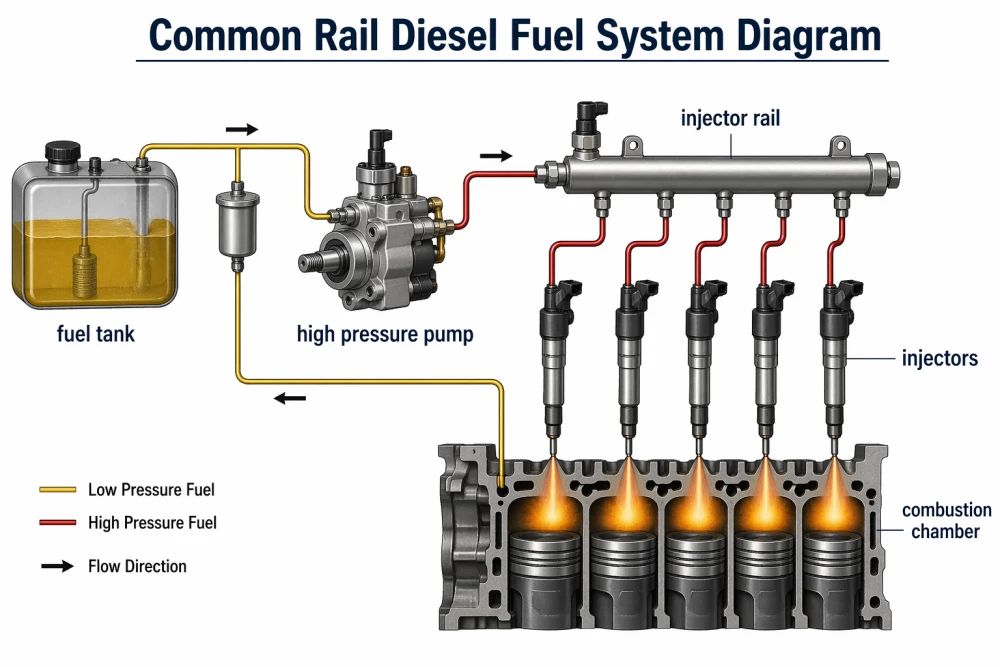

If you are not familiar with the fuel system structure, you can first read our guide on
๐ diesel fuel system components
What Happens When a Diesel Injector Fails?
A faulty injector disrupts the fuel-air mixture inside the engine. This leads to improper combustion, reduced efficiency, and increased emissions.
In modern common rail systems, injectors operate under extremely high pressure and electronic control. Even a small malfunction can significantly affect engine performance.

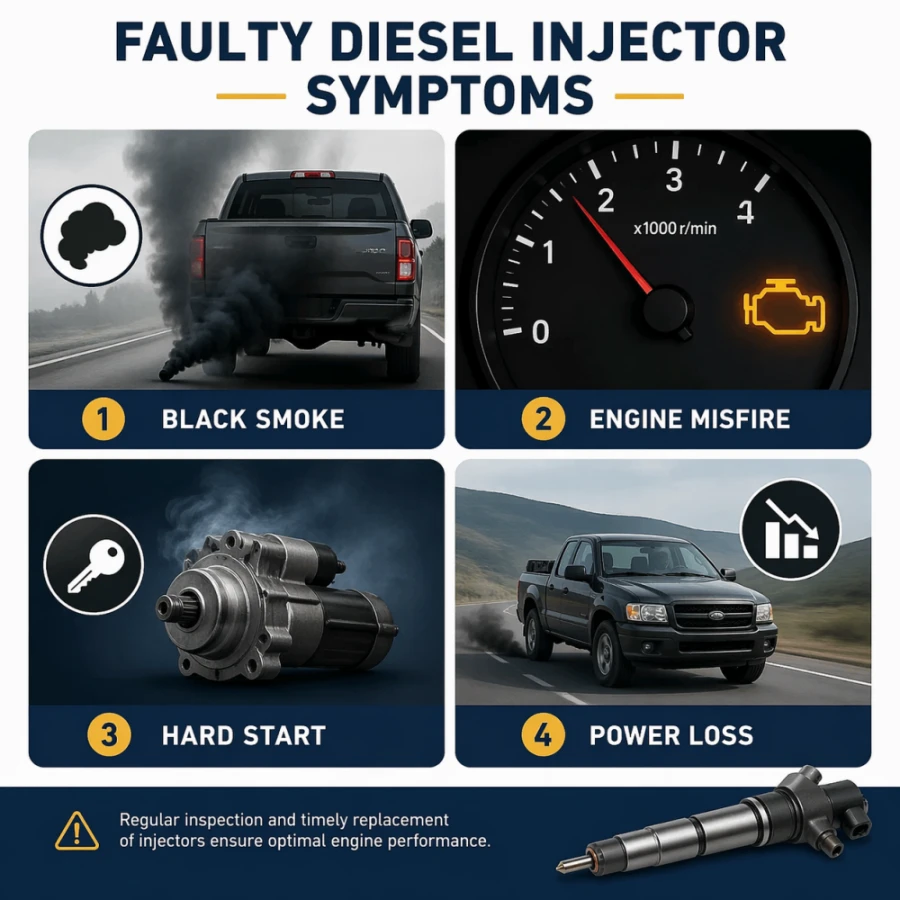

Common Signs of a Faulty Diesel Injector
1. Hard Starting or Delayed Start
A weak or leaking injector may fail to supply enough fuel during startup, especially in cold conditions.
2. Excessive Black Smoke
Poor fuel atomization causes incomplete combustion, resulting in black smoke from the exhaust.
3. Engine Misfire or Rough Idle
Uneven fuel delivery leads to unstable combustion cycles and engine vibration at idle speed.
4. Loss of Engine Power
When injectors do not spray correctly, the engine cannot generate proper combustion pressure, especially under load.
5. Increased Fuel Consumption
A leaking injector may over-fuel the engine, leading to inefficient fuel usage.
Main Causes of Diesel Injector Failure
Diesel injector problems usually develop over time due to:
- Contaminated or low-quality diesel fuel
- Carbon deposits blocking nozzle holes
- Internal wear of injector components
- Water or impurities in fuel system
- Continuous high-pressure operation in heavy-duty engines
Injection Pressure and Performance Impact
In modern common rail systems, injection pressure can reach extremely high levels. This ensures fine fuel atomization and complete combustion.
However, if pressure becomes unstable due to injector wear or clogging:
- Fuel spray pattern becomes irregular
- Combustion efficiency drops
- Engine power decreases
- Emissions increase significantly
This is why injector condition directly affects overall engine health.
How to Diagnose a Faulty Diesel Injector
Professional mechanics usually use several methods:
- Electronic diagnostic tools (ECU fault codes)
- Injector balance test
- Fuel return flow test
- Visual smoke inspection
Early diagnosis helps avoid full engine damage.
How to Fix a Faulty Diesel Injector
1. Cleaning (Minor Issues)
If the injector is only slightly clogged, ultrasonic cleaning or chemical cleaning may restore performance.

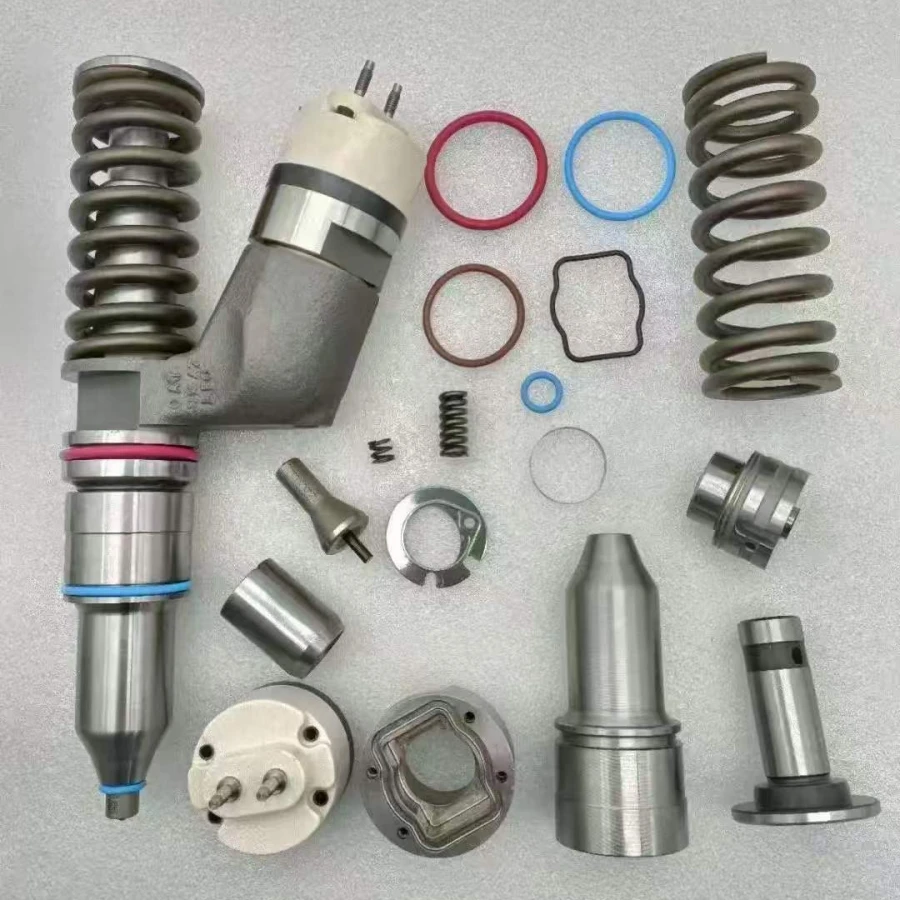

2. Repair (Partial Damage)
Some injector models allow replacement of:
- Nozzles
- Seals
- Springs
3. Replacement (Severe Failure)
If internal wear is severe, full replacement is required for stable engine operation.
๐ High-quality replacement parts can be found at:
diesel fuel injectors
Example of Real-World Injector Failure
In heavy-duty trucks, injector failure is often caused by long-term use of low-quality diesel fuel. This leads to nozzle clogging, unstable spray patterns, and reduced engine power.
Operators often notice:
- Black smoke under acceleration
- Weak pulling power on hills
- Increased fuel consumption
How to Prevent Injector Failure
To extend injector life:
- Use high-quality diesel fuel
- Replace fuel filters regularly
- Avoid water contamination in fuel tank
- Perform regular engine maintenance
- Avoid long-term low-speed engine operation
FAQ (SEO BOOST SECTION)
Q1: Can a faulty injector damage the engine?
Yes. Long-term injector failure can cause piston damage, poor combustion, and cylinder wear.
Q2: Should I clean or replace a diesel injector?
If the issue is minor, cleaning may help. If the injector is worn or leaking, replacement is recommended.
Q3: How long do diesel injectors last?
Typically 100,000โ200,000 km depending on fuel quality and maintenance.
Conclusion
A faulty diesel injector can significantly affect engine performance, fuel efficiency, and emissions. Early diagnosis and proper repair or replacement are essential to maintain engine health and avoid costly damage.
