146405-1920 Pump Head Rotor: Specs, Nissan TD42 Applications & Replacement Guide

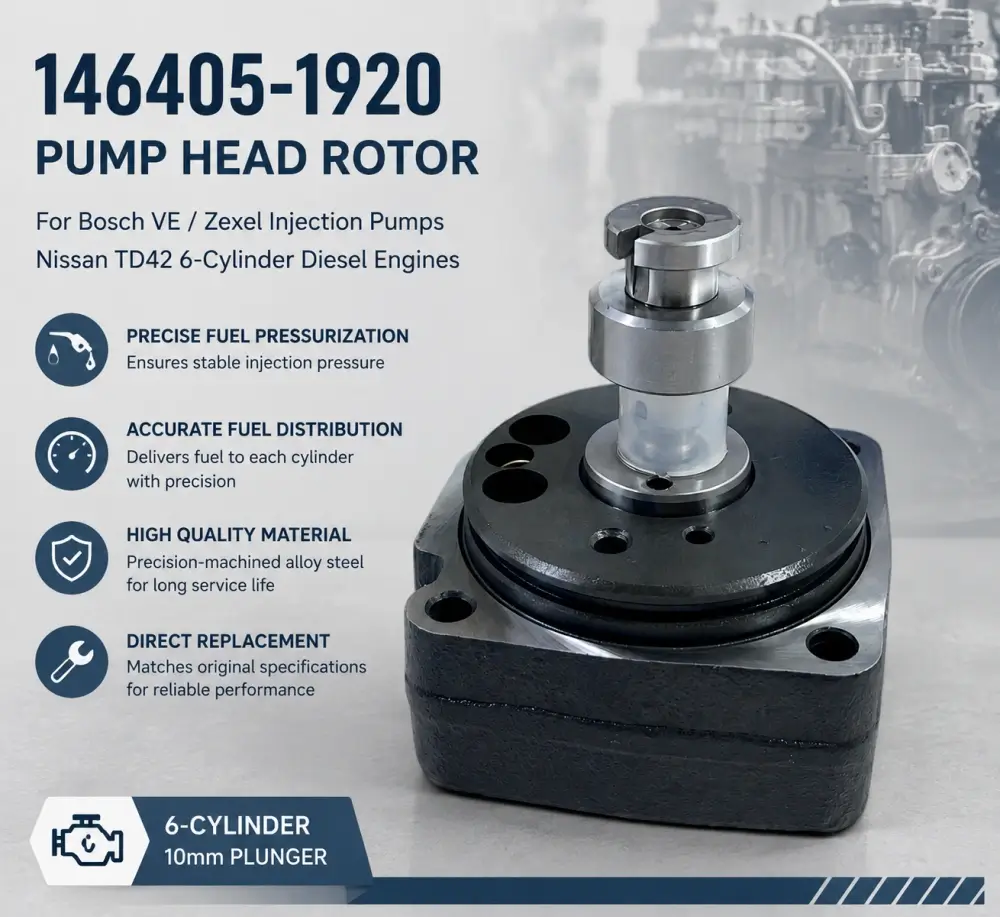

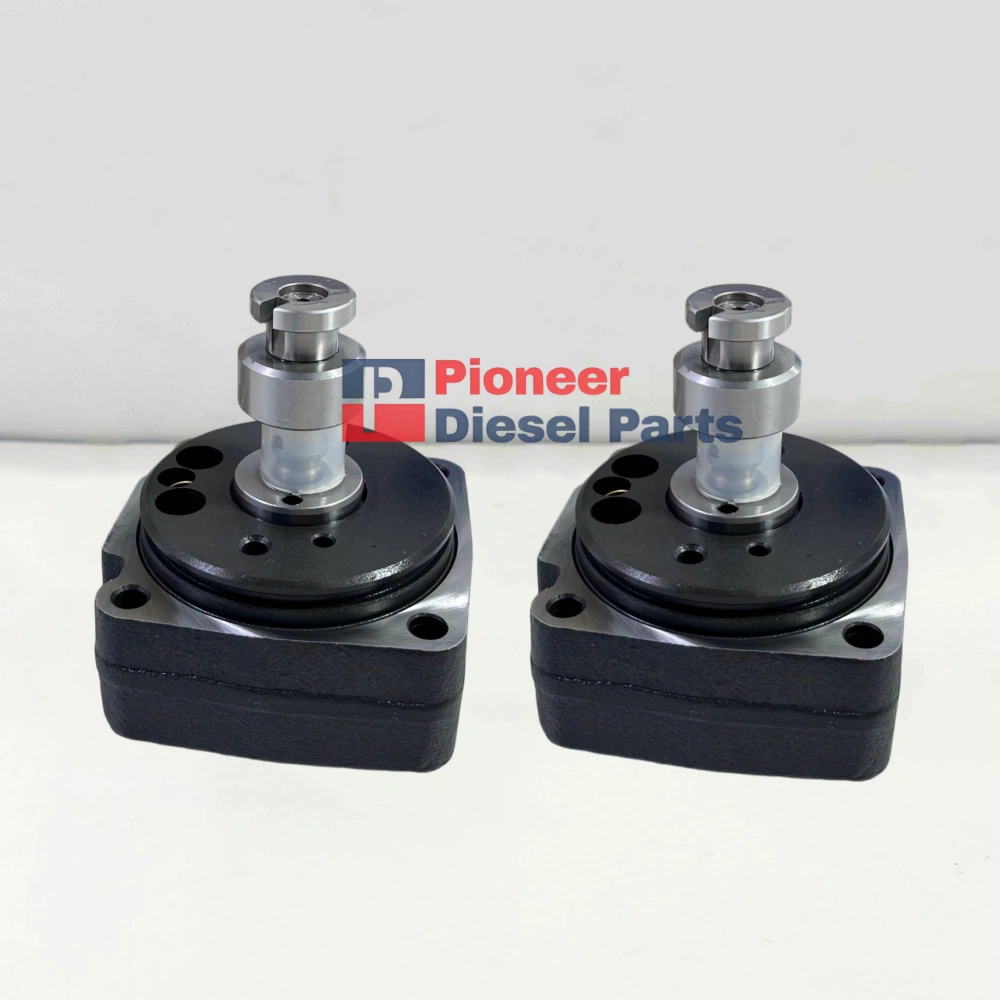

The 146405-1920 Pump Head Rotor is a 6-cylinder hydraulic head and rotor assembly used in Bosch VE and Zexel rotary distributor diesel injection pumps. It is mainly applied to Nissan TD42 diesel engines used in off-road vehicles, commercial vehicles, and industrial equipment.

As the core pressure and fuel distribution component inside the injection pump, the pump head controls fuel pressurization and delivery to each injector outlet. When replacing the 146405-1920, always confirm the original pump head number, injection pump model, engine type, and cylinder configuration before installation.

1. What Is the 146405-1920 Diesel Pump Head Used For?

The 146405-1920 is a precision hydraulic head and rotor assembly installed inside Bosch VE-type and Zexel distributor fuel injection pumps.

Its main functions include:

• Pressurizing diesel fuel to injection pressure
• Controlling fuel delivery quantity
• Distributing fuel to each cylinder injector outlet
• Maintaining stable injection timing and engine performance

The pump head works together with the distributor rotor, cam ring, delivery valves, and governor system to ensure accurate fuel injection.

2. 146405-1920 Diesel Pump Head Specifications

3. Which Engines Use the 146405-1920 Pump Head?

The most common application of the 146405-1920 pump head is the Nissan TD42 diesel engine.

Typical applications include:

• Nissan Patrol diesel vehicles
• Commercial trucks equipped with TD42 engines
• Industrial diesel equipment
• Off-road vehicles using mechanical VE injection systems

Before replacement, confirm that the original injection pump uses the same 6-cylinder VE configuration.

4. What Is the Difference Between 146405-1920 and Other VE Pump Heads?

Different VE pump heads may look similar but can have different cylinder numbers, plunger sizes, and fuel delivery characteristics.

Common examples:

146405-1920

• 6-cylinder configuration
• 10mm plunger
• Commonly used for naturally aspirated TD42 applications

146405-4220

• 6-cylinder configuration
• Larger plunger specification
• Commonly associated with TD42 turbo diesel applications

The correct pump head should always be selected according to the original injection pump model and engine requirements.

5. What Are the Symptoms of a Worn 146405-1920 Pump Head?

A worn pump head can reduce fuel delivery accuracy and cause poor engine performance.

1. Hard Starting

Common symptoms:

• Longer cranking time
• Difficult starting when the engine is hot
• Reduced fuel delivery during startup

Possible cause:

Internal wear increases fuel leakage inside the pump head, reducing injection pressure.

2. Loss of Engine Power

Symptoms:

• Weak acceleration
• Reduced performance under load
• Engine cannot reach normal RPM

Possible cause:

Worn hydraulic surfaces may reduce fuel delivery pressure and quantity.

3. Unstable Idle Speed

Symptoms:

• Engine speed fluctuates
• Rough idle operation

Possible cause:

Uneven fuel distribution caused by internal wear or poor pump calibration.

4. Excessive Exhaust Smoke

Possible causes:

• Incorrect fuel delivery
• Poor injection timing
• Reduced atomization quality

Smoke problems should also be checked together with injectors, fuel timing, and pump calibration.

5. Engine No-Start Condition

Symptoms:

• Engine cranks but does not start
• No fuel delivery from injector lines

Possible causes:

• Severe pump head wear
• Internal seizure
• Fuel contamination damage

6. Why Does a 146405-1920 Pump Head Fail?

Common causes include:

Contaminated Diesel Fuel

Water and dirt particles can damage the precision surfaces inside the pump head.

Poor Fuel Filtration

Blocked or low-quality filters allow contaminants to enter the injection system.

Long-Term Wear

Continuous operation gradually increases internal clearance and reduces fuel delivery accuracy.

Incorrect Repair or Calibration

Improper assembly or incorrect pump adjustment can affect injection performance.

7. How to Replace a 146405-1920 Pump Head Correctly?

Replacing a VE pump head requires clean working conditions and proper calibration equipment.

Important steps:

1. Confirm the replacement pump head number
2. Check injection pump model compatibility
3. Clean the pump assembly before installation
4. Lubricate the internal components with clean diesel fuel
5. Install the head rotor correctly
6. Perform injection pump calibration after assembly

Professional test bench calibration is recommended to ensure correct fuel delivery and timing.

8. How to Verify Compatibility Before Purchase?

Before ordering a 146405-1920 pump head, confirm:

• Original pump head number
• Bosch or Zexel injection pump model
• Engine model
• Number of cylinders
• Plunger size
• Rotation and pump configuration

Providing photos of the original pump head and injection pump nameplate can help avoid incorrect replacement.

9. Related Bosch/Zexel VE Pump Head Rotor Models

The 146405-1920 is a 6-cylinder hydraulic head and rotor assembly used in Bosch VE and Zexel rotary distributor diesel injection pumps. Other related VE pump head rotor models, such as different cylinder configurations and plunger specifications, are designed for various diesel engine applications. Always confirm the original pump head number, injection pump model, and engine specifications before selecting a replacement.

• Hydraulic Head and Rotor 146408-0420 6/10R for Nissan Cedric Gloria RD28T RD28E
• 096400-1270 22140-6A590 Hydraulic Head and Rotor 4/10R for Toyota 2C 2CT 3CT 2CL
• 096400-1600 Hydraulic Head and Rotor 4/11L for ISUZU Elf NKR 4JB1 4JB1TC
• 146400-5820 9461613575 Hydraulic Head and Rotor 4/10L Rotor Head for ISUZU

More to Read:

• 146402-3820 Pump Head Rotor for Isuzu 4JA1 Engine: Specs, Applications & Replacement Guide
• 1468376001 Pump Head for New Holland TM140: Specs, Applications & Replacement Guide
• Pump Head and Rotor 146405-2620 for NISSAN Patrol Safari RD28T TD42 TD42T
• Pump Head and Rotor 146405-0620 for Nissan Cedric Laurel LD28 RD28

10. Frequently Asked Questions

What is the 146405-1920 pump head used for?

The 146405-1920 is a 6-cylinder VE-type hydraulic head and rotor assembly mainly used in Bosch and Zexel rotary diesel injection pumps, especially Nissan TD42 applications.

What are the Bosch and Nissan numbers for 146405-1920?

The common reference numbers are Bosch 9461614375 and Nissan 16760-06J00.

What size plunger does the 146405-1920 have?

The 146405-1920 uses a 10mm plunger configuration and is identified as a 6/10R VE pump head.

Can 146405-1920 replace other VE pump heads?

Only when the cylinder configuration, plunger size, pump model, and fuel delivery requirements match.

What are the signs of a bad pump head?

Common signs include hard starting, power loss, unstable idle, excessive smoke, and engine no-start conditions.

Does the pump head need calibration after replacement?

Yes. VE injection pumps should be tested and calibrated after pump head replacement to ensure correct fuel delivery.

Conclusion

The 146405-1920 Diesel Pump Head is an important replacement component for Bosch VE and Zexel mechanical rotary injection pumps, especially for Nissan TD42 6-cylinder diesel applications.

For reliable replacement, always verify the original part number and injection pump specifications before installation. A correctly matched pump head combined with proper calibration can restore fuel delivery performance and extend the service life of the diesel injection system.
