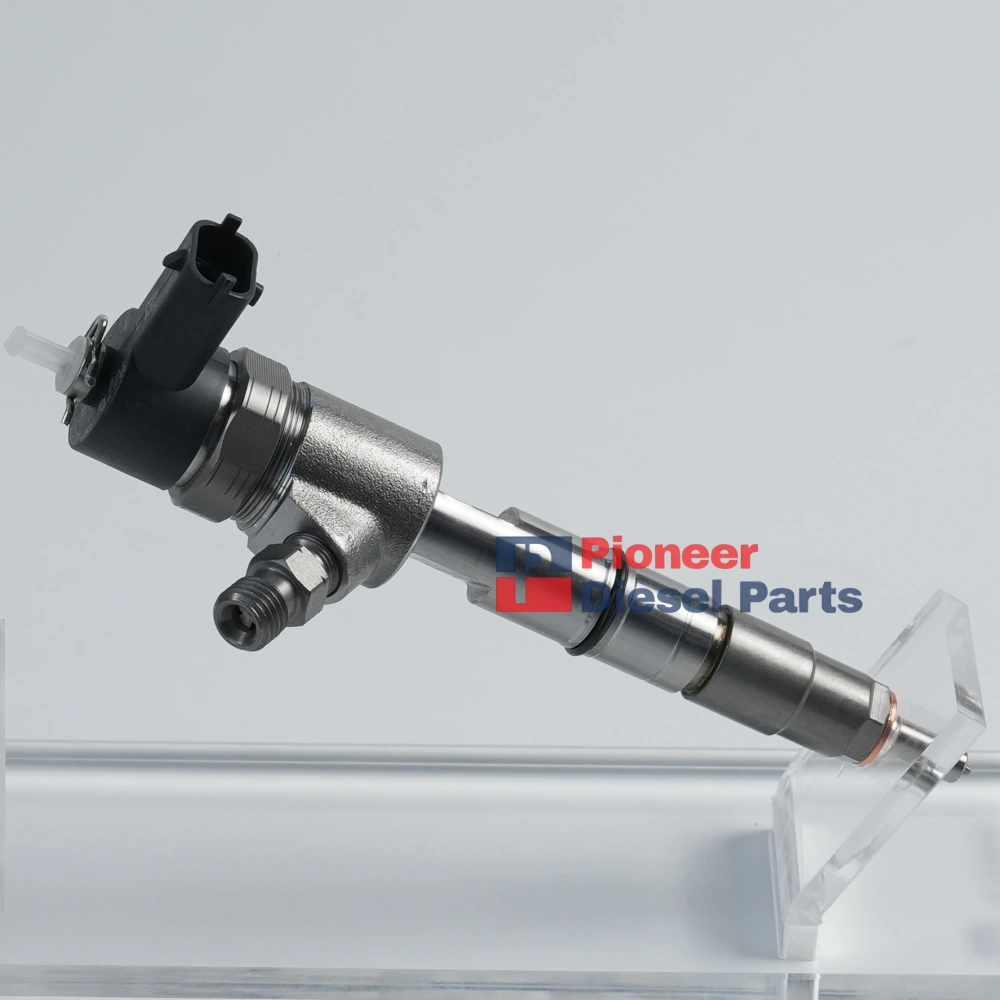

The Bosch 0445110541 is a common rail solenoid injector calibrated for turbocharged diesel engines including JMC 4JB1T, Isuzu 4JH1-TC, FAW Dachai CA4DC/CA4DW, and Xichai 490/4DW series. Turbo engines demand precise fuel delivery; this injector meets that requirement. This guide covers specifications, compatible models, turbo-specific maintenance, and a real customer case from Puerto Rico.
All injectors are 100% new aftermarket units, tested on imported professional common rail equipment, with a 6-month warranty.
Industry Experience
This guide is based on technical support cases from workshops and fleets using JMC, Isuzu, FAW, and Xichai turbo-diesel engines.
Quick Navigation
- Product Specifications & Technical Data
- Compatible Engines & Vehicle Fitments
- Quality Testing & Warranty
- Common Failure Symptoms in Turbo Diesels
- Turbo-Specific Maintenance
- Real Customer Case: Puerto Rico (Turbo Isuzu Truck)
- Related Injector Models
- FAQ
- Summary & Support
1. Product Specifications & Technical Data
| Parameter | Specification |
|---|---|
| Bosch numbers | 0445110541 / 0 445 110 541 |
| Injector type | High-pressure common rail solenoid (CRI2 / CRIN2) |
| Typical operating pressure | Approximately 1600–1800 bar (depending on ECU calibration and application) |
| Nozzle type | DLLA82P1668, 6 holes, laser-drilled |
| Control valve | F00VC01359 |
| Place of Production | China |
| Coil resistance (20°C) | 0.2 – 0.6 Ω |
| Return flow @ idle | Return flow values vary according to oil temperature, test bench calibration, and operating conditions |
| Weight | approx. 0.6 kg |
| Construction | 100% new aftermarket |
2. 0445110541 Injector Engines & Vehicle Compatibility
The 0445110541 is compatible with the following engines and vehicle models (including but not limited to).
2.1 Primary Engines
- JMC 4JB1T (2.8L turbo)
- Isuzu 4JH1-TC (3.0L turbo intercooled)
- FAW Dachai CA4DC / CA4DW
- Xichai 490 / 4DW series
2.2 Known Vehicle Fitments
| Category | Models / Applications |
|---|---|
| JMC pickups | Yuhu , Baodian – turbo versions |
| JMC light trucks | Carrying , Kaiyun – 4JB1T / 4JH1-TC |
| JMC vans | Teshun , Quanshun – turbo diesel |
| FAW light trucks | Jiefang Baling , Xiaoxing – CA4DC / CA4DW / Xichai 490 |
| Isuzu platforms | Light trucks with 4JB1T / 4JH1-TC |
Always confirm compatibility using your old injector part number, engine code, or vehicle VIN.
2.3 Cross-Reference Numbers
| Reference | Number |
|---|---|
| Bosch | 0445110541 / 0 445 110 541 |
| Control valve | F00VC01359 |
| Nozzle | DLLA82P1668 |
| Aftermarket | 0986435231, DLLA153P2351 |
3. Quality Testing & Warranty
3.1 Testing (Performed on Each Unit)
- High-pressure leak test
- Injection quantity at multiple load points (simulating turbo boost)
- Return flow measurement at idle
- Solenoid coil resistance check
Test reports available on request.
3.2 Warranty
6 months unconditional against manufacturing defects.
Exclusions: damage from contaminated fuel, incorrect installation, or wrong application.
Free technical support for coding and installation.
4. Bosch 0445110541 Injector Failure Symptoms
Turbocharged engines (JMC, Isuzu, FAW, Xichai) experience higher thermal stress. Typical injector failure symptoms include:
- Black smoke under hard acceleration
- Loss of boost response – engine feels flat
- Rough idle after high-speed runs
- Excessive return flow (unstable/abnormal flow under test conditions)
- Injector imbalance fault codes
Fuel contamination is the #1 cause. Turbo engines are less tolerant of poor atomization.
5. Turbo-Specific Maintenance
Turbocharged common rail diesels need extra care:
- Cool-down idle – After hard running, idle 30–60 seconds before shutdown to reduce nozzle coking
- Fuel filter replacement – Every 15,000–20,000 km
- Return flow testing – Every 40,000 km or earlier if performance drops
- IQA coding – Mandatory for correct fuel delivery and combustion balance
6. Real Customer Case: Puerto Rico (Turbo Isuzu Truck)
The customer: A small trucking company in San Juan, Puerto Rico, operating a fleet of Isuzu NPR light trucks equipped with 4JH1-TC turbo diesel engines. The trucks run daily deliveries in tropical conditions with frequent stop-start and highway mixes.
The situation: One truck developed black smoke during acceleration, rough idle at traffic lights, and noticeable power loss on hills. The local mechanic had replaced the injectors twice with lower-cost non-turbo units (compatible with 0445110305), but the symptoms returned within a few weeks.
How we helped: After reviewing the engine code (4JH1-TC), we identified that the injectors previously used were not optimized for turbo fuel demand. We recommended the Bosch 0445110541 Injector.
Pre-installation checks: Coil resistance and return flow testing showed balanced results across all injectors, with minimal variation between cylinders.
Installation and coding: The shop installed the injectors and entered the IQA codes using a diagnostic scanner.
The result: The truck started smoothly, idled evenly, and produced no black smoke under full throttle. Power on hills was restored, and fuel efficiency improved. The company later expanded replacement across additional vehicles.
Customer feedback:
“After switching to the correct turbo injectors, the engine became noticeably smoother and the smoke issue disappeared. Fuel consumption also improved.”
7. Related Injector Models in This Series
- 0445110305 Injector – Complete Guide for JMC & Isuzu Light Diesel Engines
- 0445110646 – Heavy-duty light truck for Isuzu 4JJ1
- Weekly industry summary – Light commercial diesel trends
8. FAQ: Bosch 0445110541 Injector
Q1: Can I use 0445110305 (non-turbo) in a turbo engine?
Not recommended. Fuel calibration differs and may cause smoke or performance loss.
Q2: What engines does 0445110541 fit?
It fits engines including but not limited to JMC 4JB1T, Isuzu 4JH1-TC, FAW Dachai CA4DC/CA4DW, and Xichai 490 / 4DW series.
Q3: How long do 0445110541 injectors last in turbo engines?
Typically 150,000–200,000 km with proper maintenance.
Q4: What is the difference between 0445110305 and 0445110541?
Both share the same platform, but 0445110541 is calibrated for higher fuel demand in turbocharged engines.
Q5: Is a diagnostic tool required for coding?
Yes. IQA coding requires compatible diagnostic equipment.
Q6: What warranty is provided?
6 months against manufacturing defects.
9. Summary & Technical Support
9.1 Key Facts
- Correct injector for JMC, Isuzu, FAW, and Xichai turbo engines
- 100% new aftermarket units
- Tested on professional common rail equipment
- 6-month warranty
- Turbo maintenance improves injector lifespan
9.2 What You Get
- Individually tested injector with IQA code
- Pre-installation testing guidance
- IQA coding support
- Application matching support
- Test report availability
9.3 Contact for Technical Questions
- 100% new tested Bosch 0445110541 Injectors
- Individual test reports available
- IQA coding support
- 6-month warranty
- Compatibility confirmation before ordering
- Worldwide shipping support
👉 Contact us for compatibility confirmation, technical assistance, or injector testing support. Replies within 24 hours.
Disclaimer
Bosch and Cummins part numbers are used for compatibility and identification purposes only. All products described in this article are aftermarket replacement parts and are not claimed to be original Bosch or Cummins products unless explicitly stated.
Vehicle compatibility may vary depending on engine calibration and regional specifications. Professional verification before installation is recommended.
