The Bosch F00RJ01479 is a common rail injector valve assembly used as a critical repair component in Bosch diesel fuel injectors. It is a precision‑engineered component that regulates fuel flow and pressure within the common rail injector assembly, ensuring accurate fuel metering, optimal atomisation, and proper combustion.
Key specifications at a glance:
- Part Number: F00RJ01479 (also F 00R J01 479, F.00R.J01.479)
- Type: Common Rail Injector Valve Assembly
- Material: High‑speed steel / Stainless steel
- Fuel Type: Diesel
- Weight: Approx. 0.03 kg
- Pressure Rating: Up to 2,000 bar
- Primary Applications: Volvo, Deutz, Iveco, and Cummins commercial vehicles
- Compatible Injectors: 0445120066, 0445120067
Why it matters: Replacing a worn Valve Assembly with the F00RJ01479 restores proper injector function, leading to better engine performance, improved fuel consumption, and reduced emissions.
👉 In short: If the Valve Assembly is worn, the injector will lose precision, causing power loss, smoke, and poor fuel economy.
Table of Contents
- What is the Bosch F00RJ01479 Valve Assembly?
- Technical Specifications of the F00RJ01479
- Which Injectors Are Compatible with the F00RJ01479?
- What Vehicles and Engines Use the F00RJ01479?
- How Does the F00RJ01479 Valve Assembly Work?
- When Should You Replace the F00RJ01479 Valve Assembly?
- Failure Case Study
- Related Models and Links in the Same Series
- Frequently Asked Questions
- Sourcing and Installation (for New Aftermarket Parts)
1. What is the Bosch F00RJ01479 Valve Assembly?
The F00RJ01479 is a high‑precision control valve assembly designed for Bosch common rail diesel fuel injection systems. As a core component within the injector, this valve is responsible for the precise metering of fuel delivered to the combustion chamber. It is constructed from high‑quality stainless steel and high‑speed steel to withstand the extreme pressures and temperatures characteristic of modern common rail systems.
The valve assembly typically consists of a valve body, control valve element, spring mechanism, and precision sealing surfaces. During operation, the valve opens and closes rapidly in response to electronic control signals from the Engine Control Unit (ECU), allowing fuel to enter or exit the control chamber with millisecond precision. This rapid cycling—hundreds of times per second—enables the precise fuel metering required for modern diesel engines to meet stringent emissions standards while delivering optimal power and efficiency.
Manufactured in China to Bosch’s stringent original equipment (OE) standards, the F00RJ01479 conforms to strict OE and ISO quality standards. Its corrosion‑resistant stainless steel construction ensures durability and reliability in high‑pressure diesel engine environments. The valve features a precision‑engineered flared end design that ensures secure and efficient fuel flow connection within fuel injection systems, reducing leakage risks compared to non‑standard designs.
Key Features:
- Precise Fuel Control: Ensures accurate fuel metering for improved power, fuel efficiency, and reduced emissions.
- High Durability: Constructed from high‑speed steel and stainless steel to withstand extreme pressures (up to 2,000 bar), temperatures, and vibrations.
- Optimised Performance: Maintains efficiency even under demanding operating conditions.
- OE Quality: Produced to Bosch’s exacting standards for precise fit and long‑lasting reliability.
2. Technical Specifications of the F00RJ01479
| Parameter | Specification |
|---|---|
| Part Type | Injector Valve Assembly |
| Manufacturer | Bosch (Genuine OE Quality) |
| Manufacturer Part Number | F 00R J01 479 |
| Alternative Numbers | F00RJ01479, F.00R.J01.479, F 00R J01 479 |
| Fuel Type | Diesel |
| Material | High‑speed steel / Stainless steel |
| Item Weight | Approx. 0.03 kg (30 g) |
| Dimensions | Approx. 12.5 x 2.5 x 2.5 cm (box size) |
| Pressure Rating | Up to 2,000 bar |
| Function | Regulates fuel flow and pressure within the common rail injector assembly for precise dosing |
| Standards | Conforms to strict OE and ISO quality standards |
| Origin | Made in China |
| Construction | Cylindrical body with flared connection |
| Temperature Range | –40°C to 600°C (stainless steel construction) |
Note: Detailed flow rate and pressure specifications may vary depending on the specific injector application. Always verify with the injector’s original specifications.
Engineering structure includes:
- Precision valve body
- Solenoid actuator coil interface
- High‑speed steel valve element
- Stainless steel sealing surfaces
- Spring‑loaded return mechanism
👉 This structure allows operation under extreme pressure up to ~2,000 bar.
3. Which Injectors Are Compatible with the F00RJ01479?

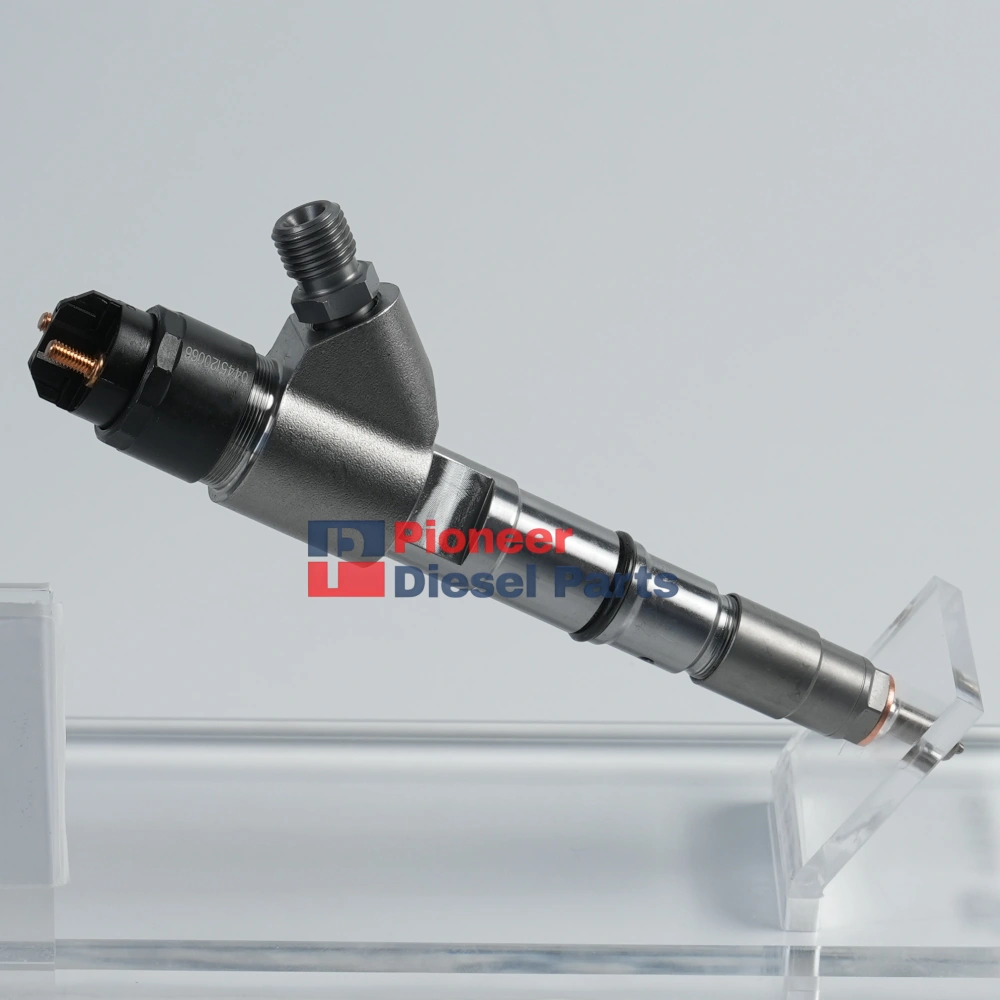

The F00RJ01479 control valve is specifically compatible with the following Bosch common rail injectors:
| Bosch Injector Part Number | Associated Nozzle |
|---|---|
| 0445120066 | DLLA144P1565 |
| 0445120067 | DLLA146P1581 |
Key Application: The F00RJ01479 is most commonly associated with injectors 0445120066 and 0445120067, which are used in Volvo and Deutz diesel engines.
These injectors are widely used in commercial vehicles and industrial diesel applications. When sourcing a replacement control valve, always verify compatibility with your specific injector part number.
Injector system characteristics:
- High‑pressure common rail injection system
- Multi‑stage injection capability
- Electronic ECU‑controlled dosing
4. What Vehicles and Engines Use the F00RJ01479?
Primary Engine Applications
The Bosch F00RJ01479 control valve assembly is designed for specific common rail injector applications in commercial vehicles and industrial engines from the following manufacturers:
| Manufacturer | Engine / Model | Application Type |
|---|---|---|
| Volvo | D6D engine, EC210 excavator | Trucks, buses, construction equipment |
| Deutz | KHD04290987, KHD4289311 | Industrial engines |
| Iveco | Commercial vehicle engines | Trucks, commercial vehicles |
| Cummins | Dongfeng Cummins engines | Commercial vehicles |
Vehicle & Equipment Brands
- Volvo – trucks, buses, and construction equipment (EC210 excavator)
- Deutz – industrial diesel engines
- Iveco – commercial trucks and vehicles
- Dongfeng Cummins – commercial vehicles
- Isuzu, Nissan, Toyota, Komatsu, Hino, Daewoo – various Japanese vehicles and construction machinery
OEM / Cross‑Reference Numbers
| OEM | Reference Number |
|---|---|
| Cummins | 4938634 |
| Iveco | 504071537 |
| Mahindra | 0305BA0031N |
| Volvo | 0433171390 |
Important: Always verify compatibility with the specific injection pump part number or vehicle VIN before purchase, as application can vary significantly by engine variant and year.
5. How Does the F00RJ01479 valve assembly Work?
The F00RJ01479 valve assembly is a critical functional unit inside the fuel injector, responsible for controlling fuel flow with high precision. The working cycle follows ECU‑controlled hydraulic logic:
- Signal Reception: The Engine Control Unit (ECU) sends an electrical pulse to the solenoid within the control valve.
- Valve Actuation: The solenoid generates a magnetic field that moves the valve element, opening or closing the fuel passage.
- Fuel Metering: When opened, fuel enters or exits the control chamber. The precise timing and duration of this opening determines the exact amount of fuel injected.
- Injection Event: The pressure changes in the control chamber control the movement of the injector needle, which ultimately delivers fuel into the combustion chamber.
- Rapid Cycling: This process repeats hundreds of times per second, enabling the precise fuel dosing required for modern diesel engines.
The valve’s stainless steel and high‑speed steel construction ensures durability under the extreme conditions of common rail systems, which can operate at pressures up to 2,000 bar. Through high‑pressure sealing components, the valve achieves maximum pressure, enabling the injector nozzle to atomise fuel more evenly for optimal combustion.
👉 This happens in milliseconds, repeatedly under every engine cycle.
6. When Should You Replace the F00RJ01479 valve assembly?
⚠️ Failure Symptoms & Diagnostic Signals
When the F00RJ01479 valve assembly wears out or becomes unstable, typical symptoms include:
- Rough or unstable idle
- Loss of engine power under load
- Increased diesel consumption
- Excessive black or white smoke from exhaust
- Hard starting (especially cold start)
- Engine knocking or abnormal combustion noise
- Check Engine Light with fuel system‑related fault codes
Root Cause Mechanisms
- Internal leakage in valve sealing surface
- Delayed solenoid response
- Pressure instability in control chamber
- Wear from ultra‑high‑pressure cycling
👉 Result: The injector loses metering precision.
Replacement Timing Guide
Replace F00RJ01479 when:
- The injector fails calibration test
- Fuel return rate is abnormally high
- Engine shows inconsistent combustion behaviour
- Mileage causes progressive injector wear
- Diagnostic shows pressure control deviation
Best practice: Replace with full injector calibration process.
Installation Note: The F00RJ01479 is a high‑precision component. Professional installation and precise calibration by a diesel fuel injection specialist are essential for optimal performance. Please keep the installation environment highly clean, as this is a precision component.
7. Failure Case Study
Case: Heavy‑duty diesel truck power loss
Symptoms:
- Weak acceleration
- High fuel consumption
- Black smoke under load
Diagnosis findings:
- Control valve response delay
- Internal pressure leakage in injector chamber
Repair action:
- Replaced F00RJ01479 control valve
- Injector recalibrated on test bench
Result after replacement:
- Power restored
- Fuel consumption reduced
- Smoke eliminated
👉 Conclusion: Valve wear = injector instability.
8. Related Models and Links in the Same Series
Other Models in the Same Series
The F00RJ01479 belongs to the Bosch control valve family and is commonly compared with the following models:
- F00RJ01222
- F00RJ01334
- F00RJ01533
- F00RJ01657
- F00RJ01704
- F00RJ01747
Tip: When sourcing a replacement control valve, always verify compatibility with your specific injector part number and vehicle application. While the F00RJ01479 is designed for Bosch injectors 0445120066 and 0445120067, other valve assemblies in this category may be required for different injector families or engine platforms.
Related Internal Links
- F00RJ02246 Injector Valve Assembly: Compatible with 0445120073 Injector & Mitsubishi 4M42 Diesel Engines
- F00RJ02103 Valve Assembly – Failure Symptoms, Testing & Cummins ISF3.8 Injector Repair Guide
- Common Rail Injector Valve F00RJ01451 for Injector 0445120074
- Common Rail Injector Valve F00RJ01727 for injector 0445120265
9. Frequently Asked Questions
Q1: Is injector recalibration mandatory after replacing the F00RJ01479?
A: Yes. The injector must be flow-tested and recalibrated on a test bench. Skipping this risks power loss, poor economy, or emissions failure.
Q2: How do I spot a genuine Bosch F00RJ01479?
A: Check the holographic packaging, sharp laser-etched part number (F 00R J01 479), uniform machining finish, and always buy from Bosch authorised dealers.
Q3: What is the coil resistance, and how do I test it?
A: At 20°C, resistance is typically 2.3Ω–4.8Ω. Use a multimeter—infinite reading = open circuit, near-zero = short circuit. Either means the valve must be replaced.
Q4: Does the same valve perform identically in different engines?
A: No. Hardware is identical, but operating parameters depend on injector-specific calibration data. Always recalibrate for the specific engine application.
Q5: Can I replace just the internal cartridge?
A: No. Always replace the complete assembly. Bosch does not supply internal parts separately, and the cartridge is precision-matched to the valve body.
Q6: What are the key installation precautions?
A: Keep the environment clean, inspect the valve stem for wear, use the OEM torque specification, and always recalibrate after installation.
Q7: What causes wear, and how can I extend service life?
A: Main causes: high-pressure cycling, fuel contamination, and thermal degradation. Extend life by using clean fuel, regular filter changes, and acting on early symptoms like rough idle or power loss.
10. Sourcing and Installation (for New Aftermarket Parts)
Sourcing Advice:
- This product is a new aftermarket (non‑OEM) part, not supplied in original Bosch packaging. However, it is manufactured to strict OE‑grade dimensional and material standards.
- Before purchasing, always confirm that the part number (F00RJ01479) matches your injector model (0445120066 / 0445120067).
- Most suppliers offer a 6‑ to 12‑month quality guarantee – request a warranty certificate at the time of purchase.
Installation Tips:
- Although aftermarket, this is still a precision component. Keep the working environment absolutely clean during installation.
- Professional installation and injector calibration by a diesel fuel injection specialist are strongly recommended.
- After fitting, the injector must be flow‑tested and return‑rate verified on a test bench.
References:
For detailed OEM specifications and application data, consult official Bosch documentation or the technical catalogs referenced in the industry.
Conclusion
The F00RJ01479 Valve Assembly is a core precision component in modern common rail injectors, directly influencing fuel metering accuracy, combustion stability, emission performance, and overall injector lifespan.
The new aftermarket replacement covered in this guide is fully compatible with OEM specifications in terms of dimensions, materials, and function – making it a reliable choice for the repair market. Whether using genuine or high‑quality aftermarket parts, correct diagnosis, proper installation, and professional calibration are the keys to restoring engine efficiency and preventing fuel system failure.
